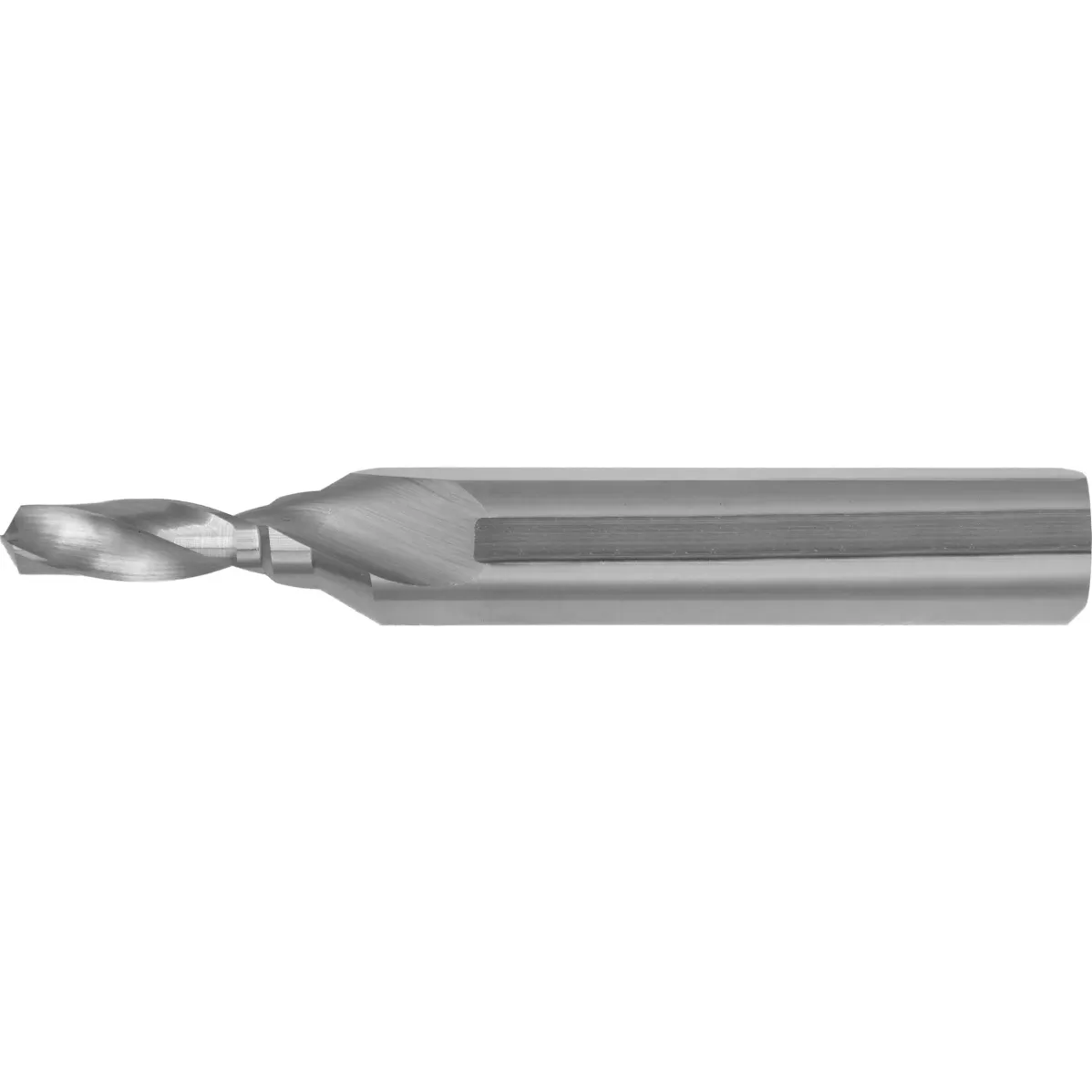

15.840 HSS-E Center Drill DIN 332-2 D for tapping holes, 60°, with chip flutes
Phantom

15.840 HSS-E Center Drill DIN 332-2 D for tapping holes, 60°, with chip flutes

The Phantom HSS-E Centerdrill DIN 332-2 D with chip breaker is the ultimate specialist for tapped holes. This tool creates a core hole and center in one pass and therefore guarantees perfect concentricity between the screw thread and the center point. The cylindrical shaft is equipped with a chip breaker (Weldon) for a direct, slip-free mounting and 100% power transmission. Made from durable HSS-E for maximum tool life.
70.93 € 70.93 €
excl. VAT

  • Brand
  • Threading
  • Hole diameter (d1)
  • Tool material
  • Cooling channel
  • Standard
  • Surface
  • Socket type
  • Cutting direction
  • Tolerance d1 (Tol. d1)
  • Tip angle
  • Wrench
  • Shape
  • Shaft Ø (d2)
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
General B2B terms and conditions of sale
Contact Us

Specifications

Hole diameter (d1) 3,3 mm, 4,2 mm, 5 mm, 6,8 mm, 8,5 mm, 10,2 mm, 14 mm, 17,5 mm, 21 mm
Shaft Ø (d2) 8 mm, 10 mm, 12,5 mm, 14 mm, 16 mm, 20 mm, 25 mm, 31,5 mm, 40 mm
Brand Phantom
Threading Blunt point
Tool material HSS-E
Cooling channel No
Standard DIN 332-2 D
Surface Ground blank
Socket type Cylindrical with flat face
Cutting direction Right
Tolerance d1 (Tol. d1) 0/-0,05
Tip angle 118°
Wrench h7
Shape D
