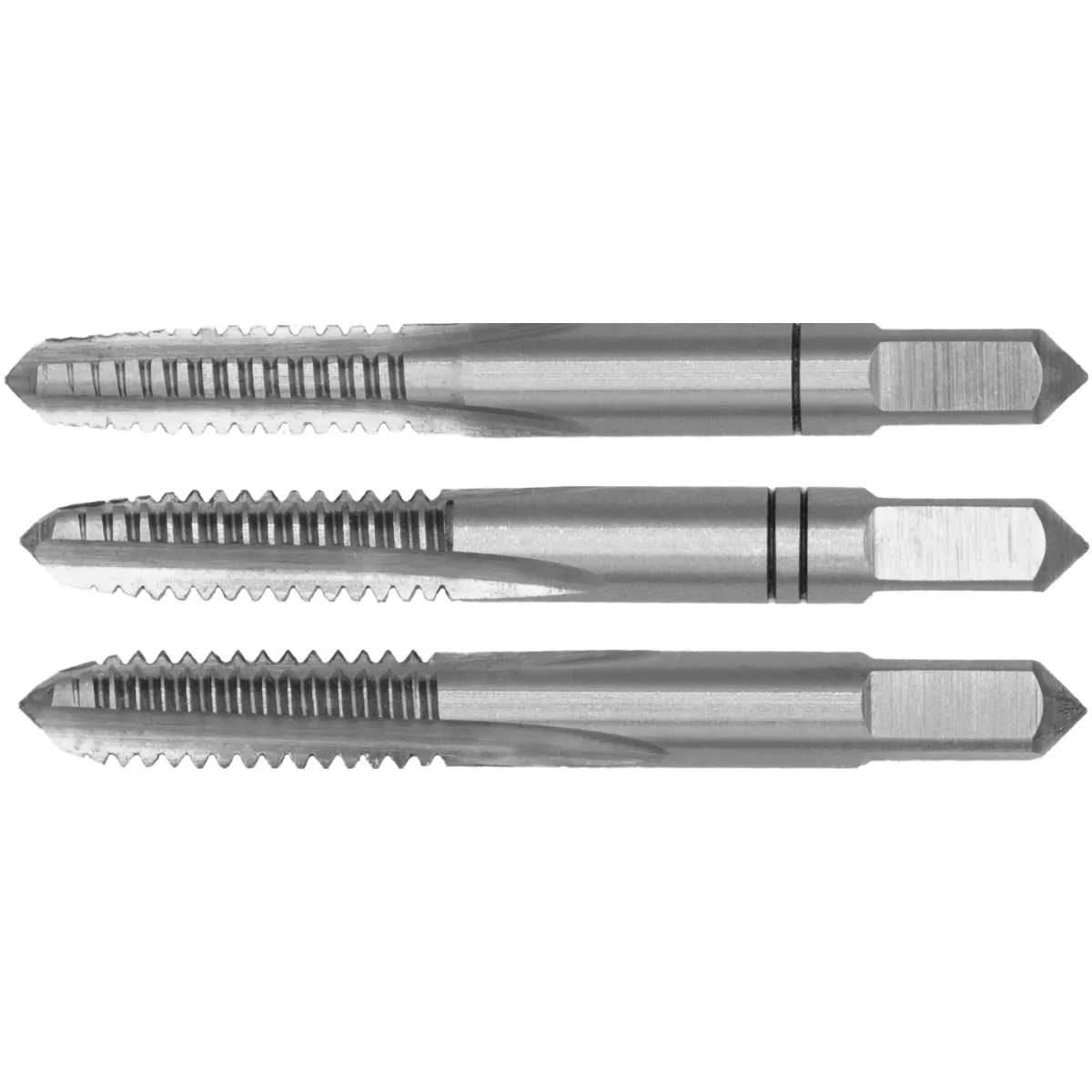

21.310 ECO HSS Machine Taps DIN 352 UNC, set of 3 pieces
International Tools

21.310 ECO HSS Machine Taps DIN 352 UNC, set of 3 pieces

<p>International Tools (IT) ECO HSS Hand Taps Set, 3-piece (DIN 352), for the manufacture of UNC (Unified National Coarse) screw threads. This set of reliable industrial quality is made from high-grade high-speed steel (HSS) for stable performance in general steel applications.</p>
<p>The set consists of a pilot, medium, and finishing tap. This 3-step system, specifically for DIN 352, progressively divides the cutting load and is essential for precise manual tapping. It ensures a controlled build-up of the thread profile in both through and blind holes.</p>
67.81 € 67.81 €
excl. VAT

  • Brand
  • Family
  • Tool material
  • Standard
  • Surface
  • Socket type
  • Cutting direction
  • Tolerance d1 (Tol. d1)
  • Thread diameter (d1)
  • Shaft Ø (d2)
  • Square (sw)
  • Pitch-Inch (TPI)
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
General B2B terms and conditions of sale
Contact Us

Specifications

Thread diameter (d1) UNC 1, UNC 1/2, UNC 1/4, UNC 1.1/4, UNC 3/4, UNC 3/8, UNC 5/8, UNC 5/16, UNC 7/8, UNC 7/16, UNC 9/16
Shaft Ø (d2) 6 mm, 7 mm, 8 mm, 9 mm, 11 mm, 12 mm, 14 mm, 18 mm, 22 mm
Square (sw) 4,9 mm, 5,5 mm, 6,2 mm, 7 mm, 9 mm, 11 mm, 14,5 mm, 18 mm
Pitch-Inch (TPI) 7 Gangen per inch, 8 Gangen per inch, 9 Gangen per inch, 10 Gangen per inch, 11 Gangen per inch, 12 Gangen per inch, 13 Gangen per inch, 14 Gangen per inch, 16 Gangen per inch, 18 Gangen per inch, 20 Gangen per inch
Brand International Tools
Family ECO
Tool material HSS
Standard DIN 352
Surface Ground blank
Socket type Cylindrical with square
Cutting direction Right
Tolerance d1 (Tol. d1) 2B
