21.430 HSS Hand taps ISO 529 BSF, set of 3 pieces
Phantom

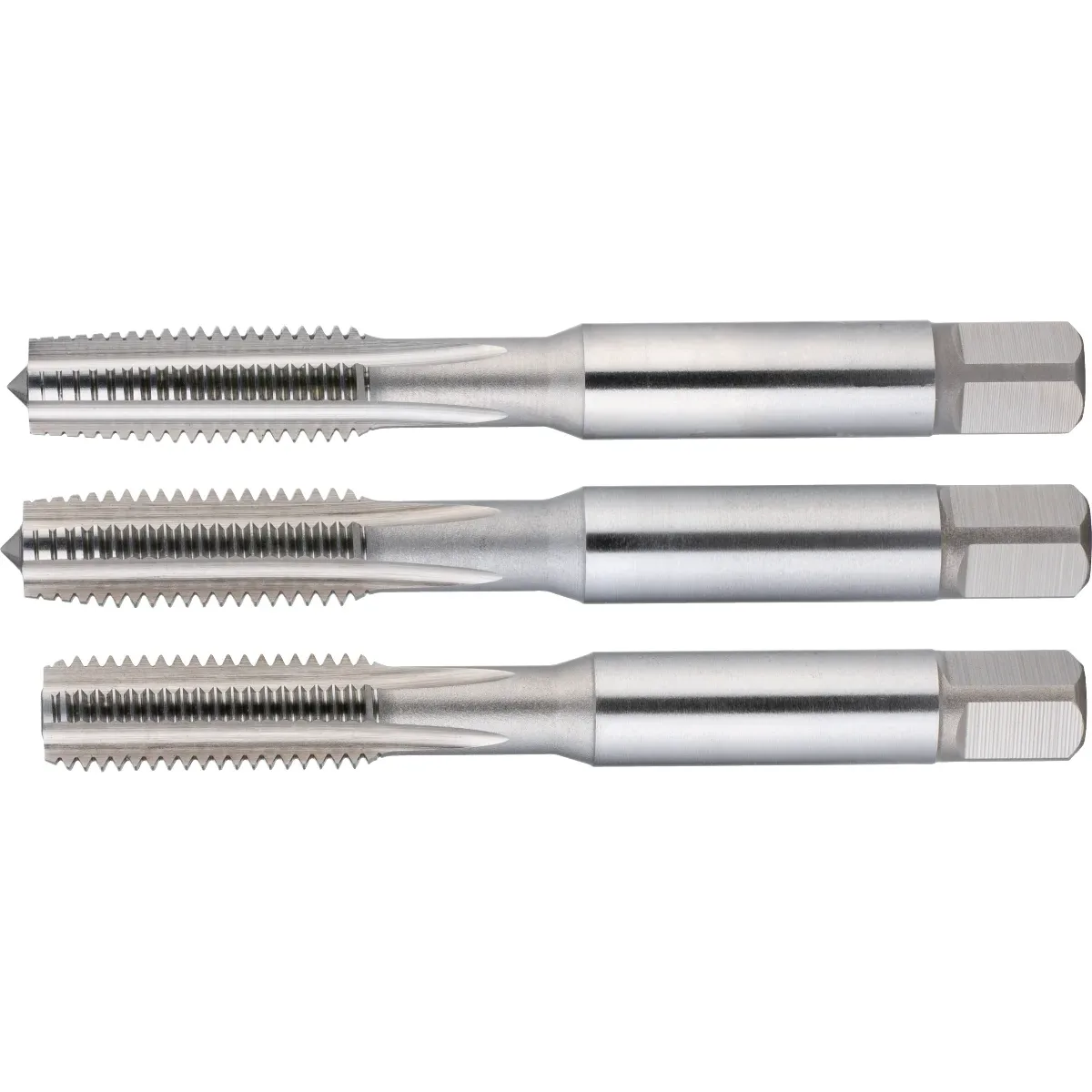

21.430 HSS Hand taps ISO 529 BSF, set of 3 pieces

Professional Phantom HSS Hand Taps Set (ISO 529), 3-pieces, for manually producing BSF (British Standard Fine) screw thread. Manufactured from high-grade high-speed steel (HSS) for reliable performance in general-purpose steel.

This set consists of three taps that all cut the same nominal end diameter (conforming to ISO 529). The system divides the cutting load into steps, with the taps differing only in a varying short, medium, and long lead-in. This design ensures a very controlled and precise thread profile build-up, ideal for through holes and (with the short lead-in) for tapping close to the bottom of blind holes.
260.06 € 260.06 €
excl. VAT

  • Brand
  • Tool material
  • Standard
  • Surface
  • Socket type
  • Cutting direction
  • Tolerance d1 (Tol. d1)
  • Thread diameter (d1)
  • Shaft Ø (d2)
  • Square (sw)
  • Pitch-Inch (TPI)
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
Terms and conditions
Contact Us

Specifications

Thread diameter (d1) BSF 1, BSF 1/2, BSF 1/4, BSF 3/4, BSF 3/8, BSF 3/16, BSF 5/8, BSF 5/16, BSF 7/8, BSF 7/16
Shaft Ø (d2) 5 mm, 7,1 mm, 8 mm, 9 mm, 10 mm, 12,5 mm, 14 mm, 16 mm, 18 mm
Square (sw) 4 mm, 5,6 mm, 6,3 mm, 7,1 mm, 8 mm, 10 mm, 11,2 mm, 12,5 mm, 14 mm
Pitch-Inch (TPI) 10 Gangen per inch, 11 Gangen per inch, 12 Gangen per inch, 14 Gangen per inch, 16 Gangen per inch, 18 Gangen per inch, 20 Gangen per inch, 22 Gangen per inch, 26 Gangen per inch, 32 Gangen per inch
Brand Phantom
Tool material HSS
Standard ISO 529
Surface Ground blank
Socket type Cylindrical with square
Cutting direction Right
Tolerance d1 (Tol. d1) Medium
