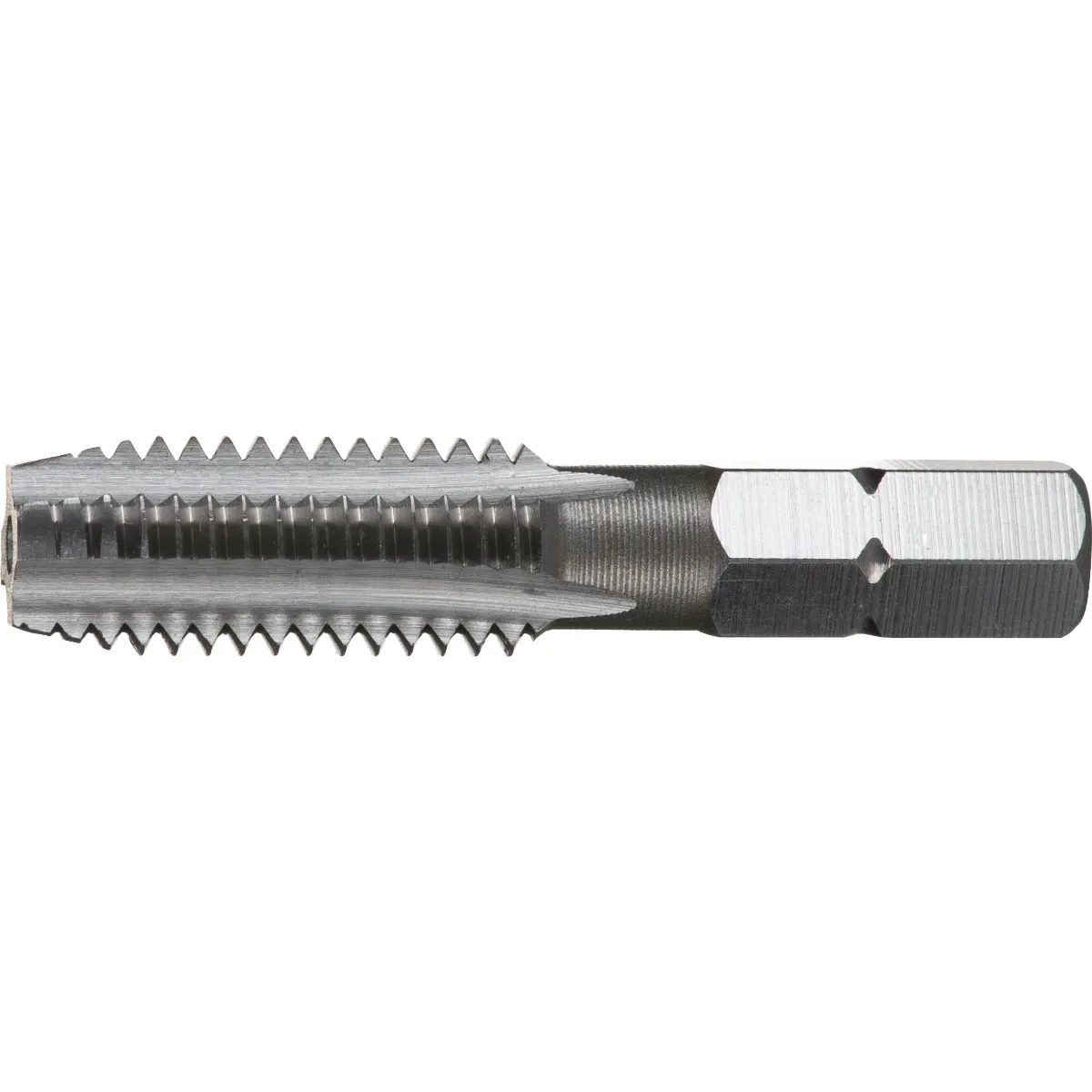

22.100 ECO HSS Machine tap DIN 3126-DIN ISO 1173 C6.3 Metric, 1/4″ (6.35 mm) hex shank
International Tools

22.100 ECO HSS Machine tap DIN 3126-DIN ISO 1173 C6.3 Metric, 1/4″ (6.35 mm) hex shank

<p>International Tools (IT) ECO HSS Machinetap for creating Metric screw threads. This tap is your choice for reliable and affordable performance in general steel applications.</p>
<p>This HSS tap has a 1/4″ (6.35 mm) hex shank (DIN 3126 / ISO 1173 C6.3 compliant). This allows you to clamp the tap directly into standard drill chucks or your (cordless) drill press. The 2-3 pass entry offers an excellent balance between controlled start and required depth, making the tap universally suitable for both through and blind holes.</p>
4.82 € 4.82 €
excl. VAT

  • Brand
  • Family
  • Tool material
  • Standard
  • Surface
  • Socket type
  • Cutting direction
  • Tolerance d1 (Tol. d1)
  • Blind/Through
  • Thread diameter (d1)
  • Shape
  • Pitch (P)
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
Terms and conditions
Contact Us

Specifications

Thread diameter (d1) M3, M4, M5, M6, M8, M10
Pitch (P) 0,5 mm, 0,7 mm, 0,8 mm, 1 mm, 1,25 mm, 1,5 mm
Brand International Tools
Family ECO
Tool material HSS
Standard DIN 3126-DIN ISO 1173 C6,3
Surface Ground blank
Socket type Hexagonal
Cutting direction Right
Tolerance d1 (Tol. d1) ISO 2 / 6H
Blind/Through for blind and through holes
Shape C
