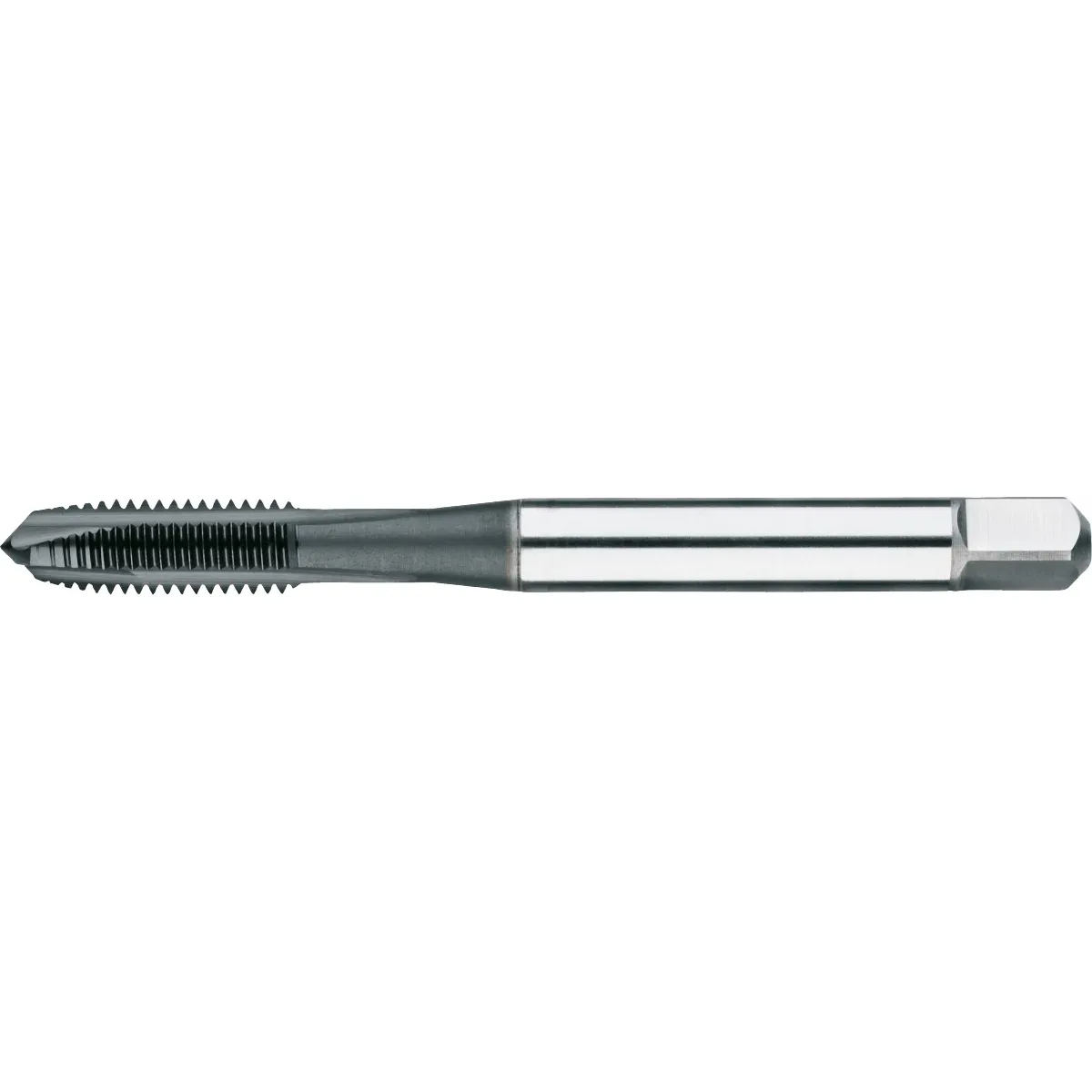

22.240 UNI HSS-E Machine tap DIN 371 Metric, TiCN
Phantom

22.240 UNI HSS-E Machine tap DIN 371 Metric, TiCN

Phantom UNI HSS-E Machinetap DIN 371 Metric, TiCN<br>The Phantom UNI HSS-E machinetap (DIN 371) with thick shank for maximum breakage resistance. The hard TiCN coating is specially suitable for difficult materials and delivers significantly more holes in stainless steel. The chip breaker (3.5-5 threads) for through holes and the universal anti-overcut geometry together ensure an extremely reliable and precise tapping result.
30.88 € 30.88 €
excl. VAT

  • Brand
  • Family
  • Tool material
  • Cooling channel
  • Standard
  • Surface
  • Socket type
  • Cutting direction
  • Tolerance d1 (Tol. d1)
  • Blind/Through
  • Thread diameter (d1)
  • Wrench
  • Shape
  • Pitch (P)
  • Shaft Ø (d2)
  • Square (sw)
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
General B2B terms and conditions of sale
Contact Us

Specifications

Thread diameter (d1) M2, M2,5, M3, M4, M5, M6, M7, M8, M9, M10
Pitch (P) 0,4 mm, 0,45 mm, 0,5 mm, 0,7 mm, 0,8 mm, 1 mm, 1,25 mm, 1,5 mm
Shaft Ø (d2) 2,8 mm, 3,5 mm, 4,5 mm, 6 mm, 7 mm, 8 mm, 9 mm, 10 mm
Square (sw) 2,1 mm, 2,7 mm, 3,4 mm, 4,9 mm, 5,5 mm, 6,2 mm, 7 mm, 8 mm
Brand Phantom
Family UNI
Tool material HSS-E
Cooling channel No
Standard DIN 371
Surface TiCN
Socket type Cylindrical with square
Cutting direction Right
Tolerance d1 (Tol. d1) ISO 2 / 6H
Blind/Through for through holes
Wrench h9
Shape B
