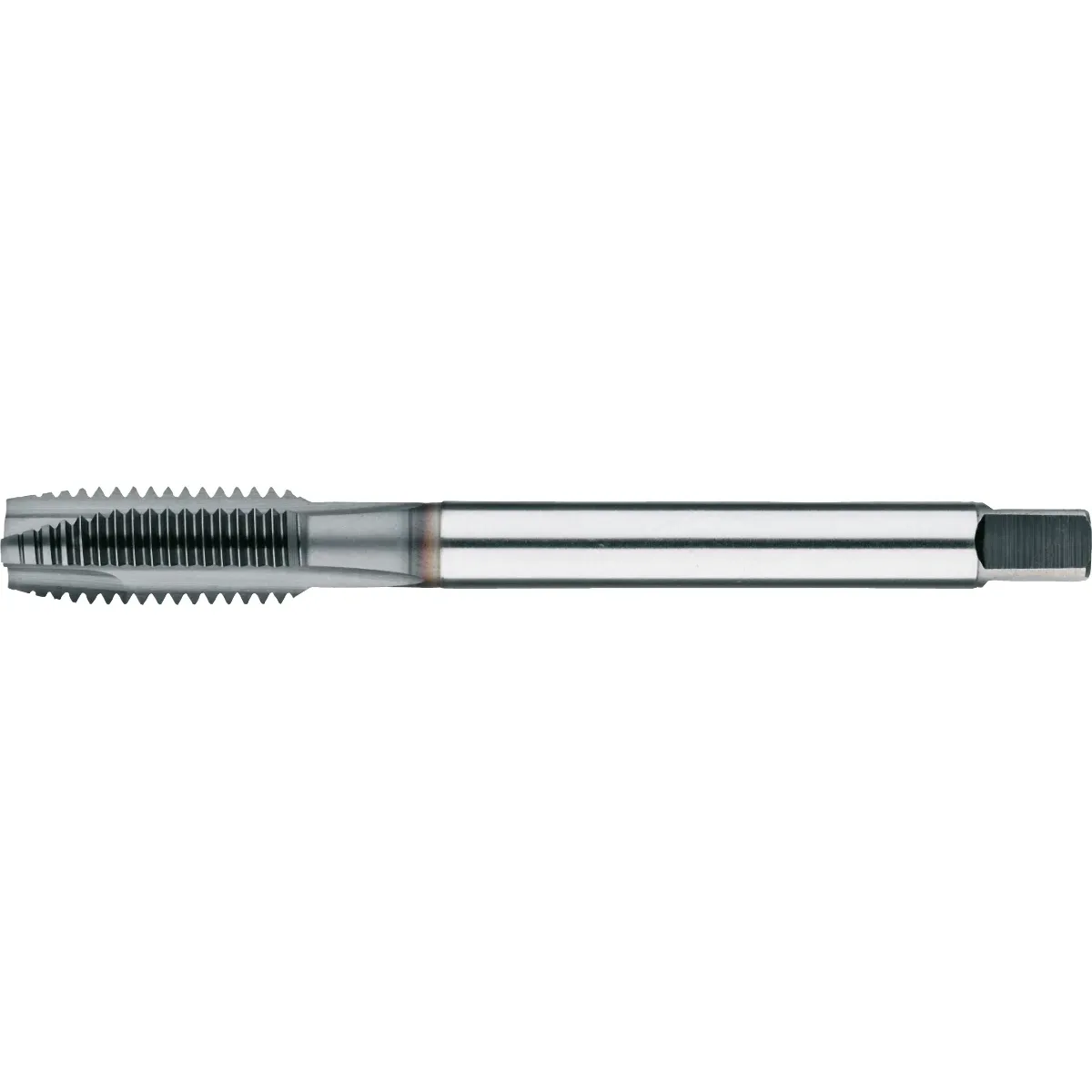

22.505 HSS-E PM Machine tap DIN 376 Metric, 1400 N/mm², TiCN
Phantom

22.505 HSS-E PM Machine tap DIN 376 Metric, 1400 N/mm², TiCN

Professional Phantom HSS-E PM Machine Tap (DIN 376) for Metric screw thread. This Steel specialist is specifically designed for the mechanical machining of materials with high tensile strength, up to 1400 N/mm².<br><br>The HSS-E Powder Metal (PM) guarantees extreme toughness, while the TiCN coating ensures superior wear resistance, resulting in an exceptionally long service life.<br><br>Characteristic of DIN 376 is the through-hole (reduced shank), ideal for reaching deeper holes. The chip breaker (form B) and 3.5-5 thread engagement ensure effective chip removal for through holes.
74.75 € 74.75 €
excl. VAT

  • Brand
  • Tool material
  • Cooling channel
  • Standard
  • Surface
  • Socket type
  • Cutting direction
  • Tolerance d1 (Tol. d1)
  • Blind/Through
  • Thread diameter (d1)
  • Shaft Ø (d2)
  • Cassette type
  • Wrench
  • Square (sw)
  • Pilot hole diameter (Ø)
  • Shape
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
Terms and conditions
Contact Us

Specifications

Brand Phantom
Tool material HSS-E PM
Cooling channel No
Standard DIN 376
Surface TiCN
Socket type Cylindrical with square
Cutting direction Right
Tolerance d1 (Tol. d1) ISO 2 / 6H
Blind/Through for through holes
Thread diameter (d1) M12
Shaft Ø (d2) 9 mm
Cassette type 1,75 mm
Wrench h9
Square (sw) 7 mm
Pilot hole diameter (Ø) 10,2 mm
Shape B
