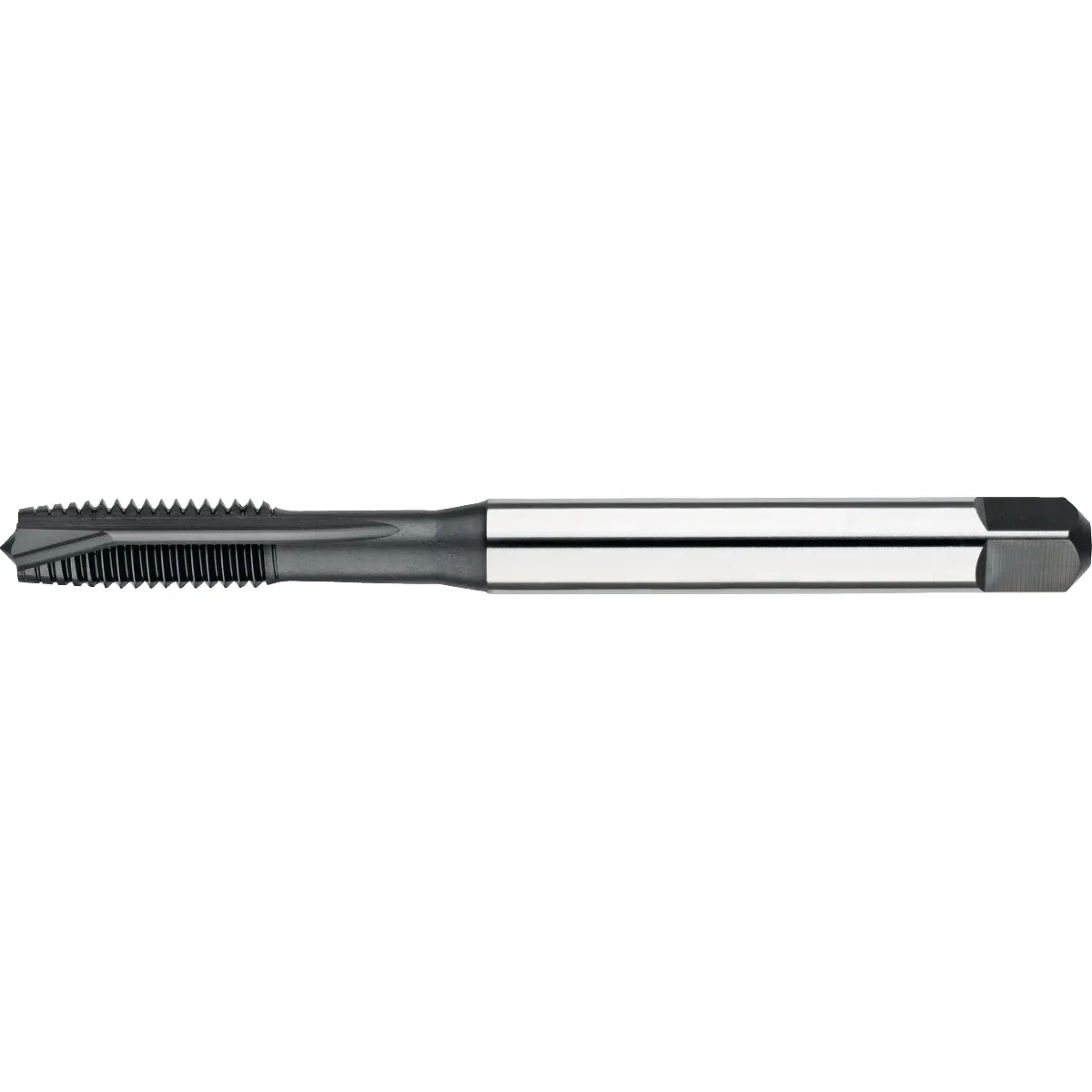

22.530 HSS-E PM Machine tap DIN 371 Metric, titanium and nickel alloys, steam relieved
Phantom

22.530 HSS-E PM Machine tap DIN 371 Metric, titanium and nickel alloys, steam relieved

Professional Phantom HSS-E PM Machine Tap (DIN 371) for Metric screw thread. This Titanium and Nickel alloy specialist is specifically designed for the mechanical tapping of exotic materials such as Inconel, Hastelloy, and Titanium.<br><br>The HSS-E Powder Metal (PM) base material provides the necessary toughness and heat resistance for these materials. The steam-vented finish (surface treatment) prevents cold welding, which is critical for Nickel alloys.<br><br>The DIN 371 standard guarantees a reinforced shank for maximum stability. The chip breaker (form B) and 3.5-5 thread engagement ensure effective chip removal for through holes.
27.03 € 27.03 €
excl. VAT

  • Brand
  • Tool material
  • Cooling channel
  • Standard
  • Surface
  • Socket type
  • Cutting direction
  • Tolerance d1 (Tol. d1)
  • Blind/Through
  • Thread diameter (d1)
  • Wrench
  • Shape
  • Pitch (P)
  • Shaft Ø (d2)
  • Square (sw)
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
General B2B terms and conditions of sale
Contact Us

Specifications

Thread diameter (d1) M3, M4, M5, M6, M8, M10
Pitch (P) 0,5 mm, 0,7 mm, 0,8 mm, 1 mm, 1,25 mm, 1,5 mm
Shaft Ø (d2) 3,5 mm, 4,5 mm, 6 mm, 8 mm, 10 mm
Square (sw) 2,7 mm, 3,4 mm, 4,9 mm, 6,2 mm, 8 mm
Brand Phantom
Tool material HSS-E PM
Cooling channel No
Standard DIN 371
Surface Steam treated
Socket type Cylindrical with square
Cutting direction Right
Tolerance d1 (Tol. d1) ISO 2 / 6H
Blind/Through for through holes
Wrench h9
Shape B
