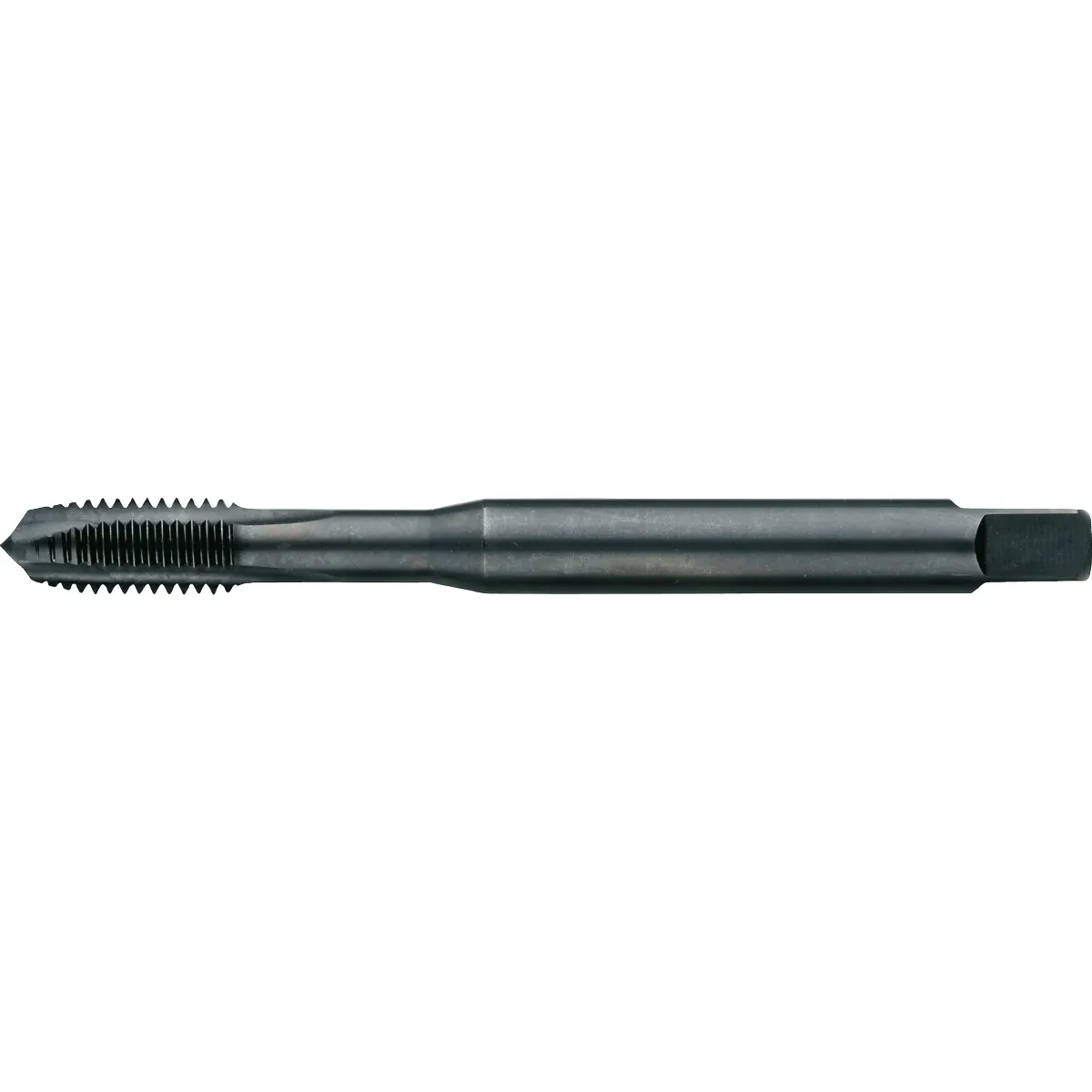

22.595 ECO PRO HSS-E Machine tap DIN 371 Metric, steam relieved, stainless steel
International Tools

22.595 ECO PRO HSS-E Machine tap DIN 371 Metric, steam relieved, stainless steel

International Tools (IT) ECO PRO HSS-E machine tap (DIN 371) for tapping metric screw threads. This industry-quality tap is the stainless steel specialist in the ECO PRO line.<br><br>Manufactured from cobalt-alloyed HSS-E, this tap provides the required heat resistance for working with tough stainless steel. The steam vent finish (surface treatment) prevents cold welding (chip formation at the cutting edge), which is crucial for stainless steel.<br><br>The DIN 371 standard guarantees a reinforced shank for maximum stability. The helical rake (form B) and 3.5-5 thread cutting edge are optimized for through holes, where chips are effectively pushed forward.
12.84 € 12.84 €
excl. VAT

  • Brand
  • Family
  • Tool material
  • Cooling channel
  • Standard
  • Surface
  • Socket type
  • Cutting direction
  • Tolerance d1 (Tol. d1)
  • Blind/Through
  • Thread diameter (d1)
  • Wrench
  • Shape
  • Pitch (P)
  • Shaft Ø (d2)
  • Square (sw)
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
Terms and conditions
Contact Us

Specifications

Thread diameter (d1) M3, M4, M5, M6, M8, M10
Pitch (P) 0,5 mm, 0,7 mm, 0,8 mm, 1 mm, 1,25 mm, 1,5 mm
Shaft Ø (d2) 3,5 mm, 4,5 mm, 6 mm, 8 mm, 10 mm
Square (sw) 2,7 mm, 3,4 mm, 4,9 mm, 6,2 mm, 8 mm
Brand International Tools
Family ECO PRO
Tool material HSS-E
Cooling channel No
Standard DIN 371
Surface Steam treated
Socket type Cylindrical with square
Cutting direction Right
Tolerance d1 (Tol. d1) ISO 2 / 6H
Blind/Through for through holes
Wrench h9
Shape B
