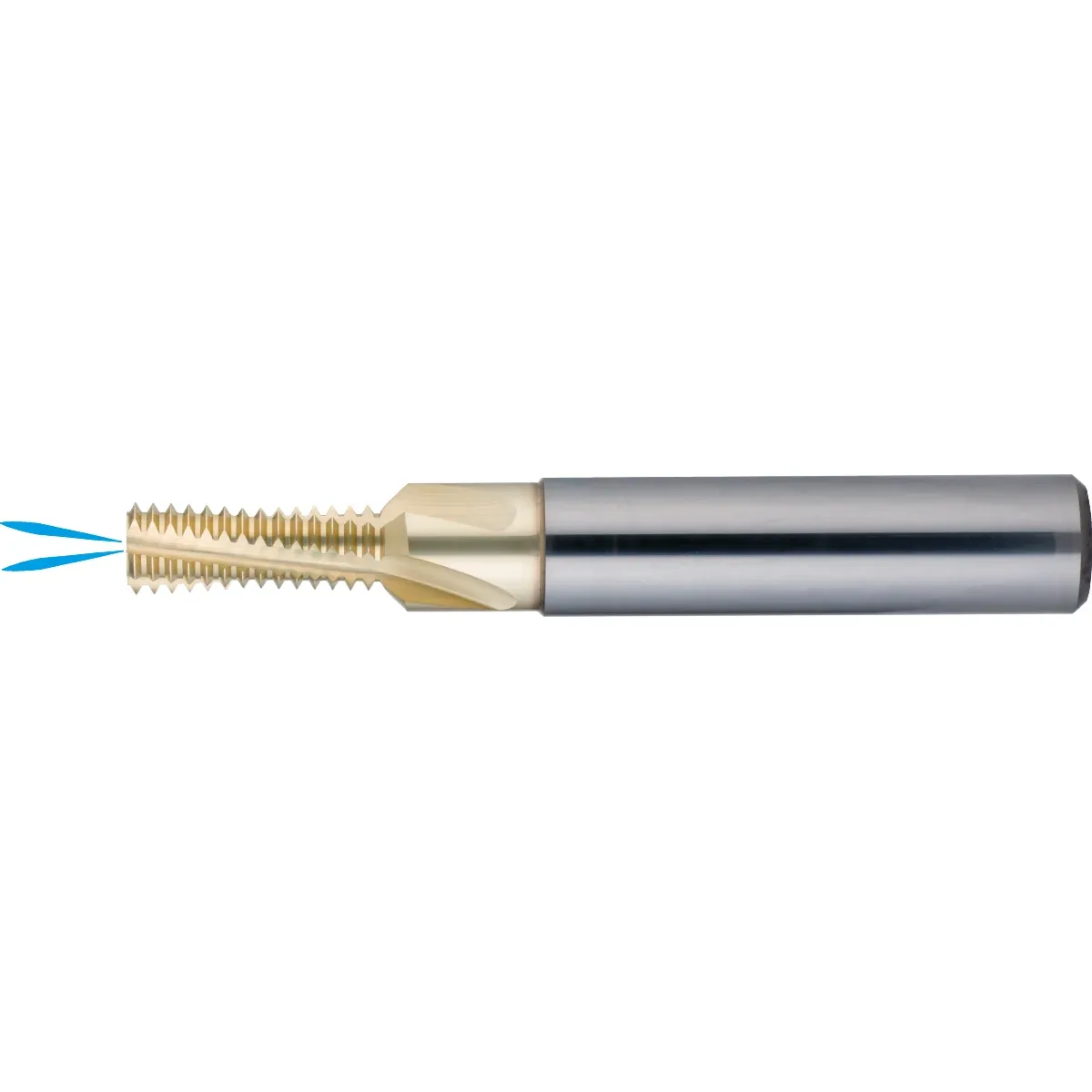

26.384 Hard metal thread mill 2xD with coolant channel, with phase, ZrN-X
Phantom

26.384 Hard metal thread mill 2xD with coolant channel, with phase, ZrN-X

The Phantom Hardmetal Thread Mill 2xD with coolant channel and ZrN-X coating combines universal thread milling with direct deburring. The tool realizes a 2xD full-profile thread and makes it possible to apply deburring in an additional movement. The internal coolant channel ensures optimal chip removal during this process. By not having to switch to a deburring drill, you significantly increase the efficiency and process reliability of your production.
337.18 € 337.18 €
excl. VAT

  • Brand
  • Tool material
  • Cooling channel
  • Surface
  • Socket type
  • Cutting direction
  • Diameter Ø (d1)
  • Wrench
  • Spoed (P)
  • Shaft Ø (d2)
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
Terms and conditions
Contact Us

Specifications

Diameter Ø (d1) 2,3 mm, 3 mm, 4 mm, 4,8 mm, 6,4 mm, 7,95 mm, 9,95 mm, 12,8 mm
Spoed (P) 0,5 mm, 0,7 mm, 0,8 mm, 1 mm, 1,25 mm, 1,5 mm, 1,75 mm, 2 mm
Shaft Ø (d2) 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 18 mm
Brand Phantom
Tool material Carbide
Cooling channel Axial
Surface ZrN-X
Socket type Cylindrical shank (DIN 6535-HA)
Cutting direction Right
Wrench h6
