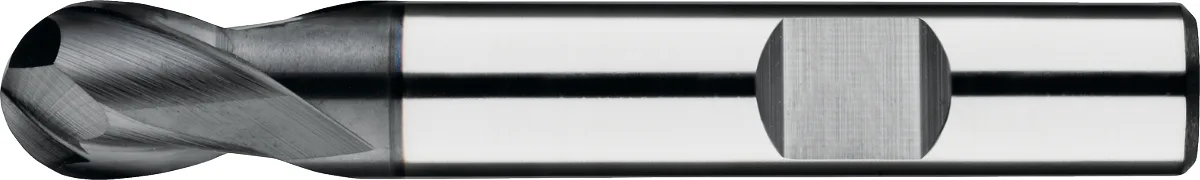

36.244 UNI hard metal radius end mill, 2-flute DIN 6527-B short, AlTiN-X
Phantom

36.244 UNI hard metal radius end mill, 2-flute DIN 6527-B short, AlTiN-X

This Phantom UNI hardmetal radiusfree is ideally suited for universal applications. Thanks to the high-quality hardmetal and the AlTiN-X coating, you benefit from high hardness and excellent heat resistance. The short 2-flute design ensures stability during various profiling operations. The cylindrical shank with Weldon clamping surface (DIN 6535-HB) ensures quick and secure clamping. This ground tool offers precision for a professional result.
23.87 € 23.87 €
excl. VAT

  • Brand
  • Tool material
  • Cooling channel
  • Standard
  • Surface
  • Socket type
  • Tolerance d1 (Tol. d1)
  • Number of cutting edges (z)
  • Diameter Ø (d1)
  • Type
  • Wrench
  • Tolerance r (Tol. r)
  • Radius (r)
  • Shaft Ø (d2)
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
Terms and conditions
Contact Us

Specifications

Diameter Ø (d1) 2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm, 18 mm, 20 mm
Radius (r) 1 mm, 1,5 mm, 2 mm, 2,5 mm, 3 mm, 4 mm, 5 mm, 6 mm, 7 mm, 8 mm, 9 mm, 10 mm
Shaft Ø (d2) 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm, 18 mm, 20 mm
Brand Phantom
Tool material Carbide
Cooling channel No
Standard DIN 6527-B
Surface AlTiN-X
Socket type Weldon (DIN 6535-HB)
Tolerance d1 (Tol. d1) h10
Number of cutting edges (z) 2
Type 30°
Wrench h6
Tolerance r (Tol. r) ±0,02
