Phantom

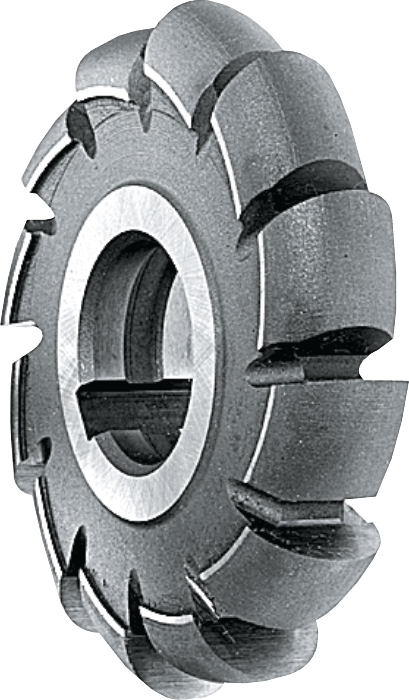

38.300 HSS-E ConvexFrees DIN 856

This Phantom convex mill made of high-grade HSS-E is specifically designed to mill a hollow radius on your workpieces. Thanks to manufacturing in accordance with DIN 856, you are assured of high dimensional accuracy and a long service life. This ground tool delivers excellent surface quality when applying half-round profiles. This way, you achieve stable machining and a professional finish of various metals.
119.28 € 119.28 €
excl. VAT

  • Brand
  • Tool material
  • Cooling channel
  • Standard
  • Surface
  • Socket type
  • Tolerance d1 (Tol. d1)
  • Diameter Ø (d1)
  • Working length
  • Wrench
  • Radius (r)
  • Uitvoering
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
Terms and conditions

Specifications

Diameter Ø (d1) 50 mm, 63 mm, 80 mm, 100 mm
Radius (r) 1 mm, 1,25 mm, 1,5 mm, 2 mm, 2,5 mm, 3 mm, 3,5 mm, 4 mm, 4,5 mm, 5 mm, 5,5 mm, 6 mm, 8 mm, 10 mm, 12 mm
Uitvoering r 1 mm · b1 2 mm, r 1,25 mm · b1 2,5 mm, r 1,5 mm · b1 3 mm, r 2 mm · b1 4 mm, r 2,5 mm · b1 5 mm, r 3 mm · b1 6 mm, r 3,5 mm · b1 7 mm, r 4 mm · b1 8 mm, r 4,5 mm · b1 9 mm, r 5 mm · b1 10 mm, r 5,5 mm · b1 11 mm, r 6 mm · b1 12 mm, r 8 mm · b1 16 mm, r 10 mm · b1 20 mm, r 12 mm · b1 24 mm
Brand Phantom
Tool material HSS-E
Cooling channel No
Standard DIN 856
Surface Ground blank
Socket type Axial hole
Tolerance d1 (Tol. d1) js16
Working length s10
Wrench H7
