38.400 HSS-E AngleHeadFrees DIN 842-A
Phantom

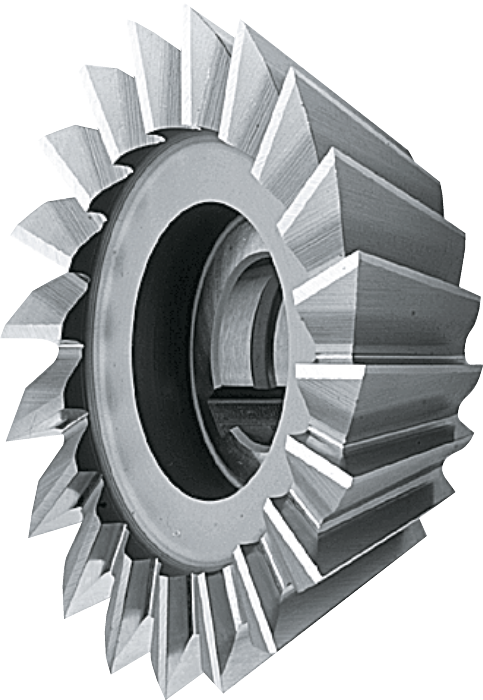

38.400 HSS-E AngleHeadFrees DIN 842-A

This Phantom angle head mill according to DIN 842-A is manufactured from high-grade HSS-E for excellent toughness. The tool is executed with a shaft according to DIN 138, which guarantees a stable mounting on a push-through milling pin. For maximum flexibility, these mills are available in angles of 45°, 50°, and 60°. This ground tool is specifically designed for precise milling of beveled edges and angular profiles in various steel types, allowing you to benefit from a long service life and a clean result.
119.03 € 119.03 €
excl. VAT

  • Brand
  • Tool material
  • Cooling channel
  • Standard
  • Surface
  • Socket type
  • Tolerance d1 (Tol. d1)
  • Diameter Ø (d1)
  • Working length
  • Wrench
  • Uitvoering
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
Terms and conditions
Contact Us

Specifications

Diameter Ø (d1) 40 mm, 50 mm, 63 mm, 80 mm, 100 mm
Uitvoering b1 12 mm · α1 45°, b1 13 mm · α1 50°, b1 13 mm · α1 60°, b1 15 mm · α1 45°, b1 16 mm · α1 50°, b1 16 mm · α1 60°, b1 18 mm · α1 45°, b1 20 mm · α1 50°, b1 20 mm · α1 60°, b1 23 mm · α1 45°, b1 25 mm · α1 50°, b1 25 mm · α1 60°, b1 30 mm · α1 45°, b1 32 mm · α1 50°, b1 32 mm · α1 60°
Brand Phantom
Tool material HSS-E
Cooling channel No
Standard DIN 842-A
Surface Ground blank
Socket type Axial hole
Tolerance d1 (Tol. d1) js16
Working length js16
Wrench H7
