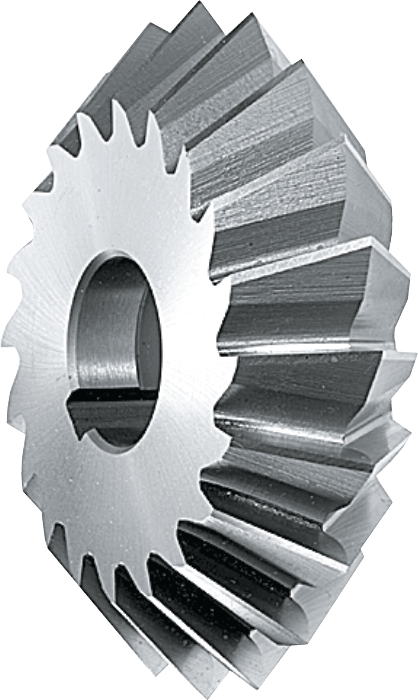

38.450 HSS-E PrismFrees DIN 847
Phantom

38.450 HSS-E PrismFrees DIN 847

This Phantom HSS-E prism flute according to DIN 847 is made of high-quality cutting material with cobalt alloy. With it you achieve precise V-grooves and prism flutes in various steel types. The tool is ground for high dimensional accuracy and long tool life. With available angles of 45°, 60° and 90° you have the right solution for every profiling. The robust construction guarantees you a stable machining and a professional finish on your workpieces.
131.49 € 131.49 €
excl. VAT

  • Brand
  • Tool material
  • Cooling channel
  • Standard
  • Surface
  • Socket type
  • Tolerance d1 (Tol. d1)
  • Diameter Ø (d1)
  • Wrench
  • Uitvoering
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
Terms and conditions
Contact Us

Specifications

Diameter Ø (d1) 50 mm, 63 mm, 80 mm, 100 mm
Uitvoering b1 10 mm · α1 45° · z 16, b1 10 mm · α1 60° · z 16, b1 12 mm · α1 45° · z 20, b1 14 mm · α1 60° · z 16, b1 14 mm · α1 90° · z 16, b1 18 mm · α1 45° · z 20, b1 18 mm · α1 60° · z 18, b1 20 mm · α1 90° · z 16, b1 22 mm · α1 90° · z 18, b1 25 mm · α1 60° · z 20, b1 32 mm · α1 90° · z 20, b1 8 mm · α1 45° · z 16
Brand Phantom
Tool material HSS-E
Cooling channel No
Standard DIN 847
Surface Ground blank
Socket type Axial hole
Tolerance d1 (Tol. d1) js16
Wrench H7
