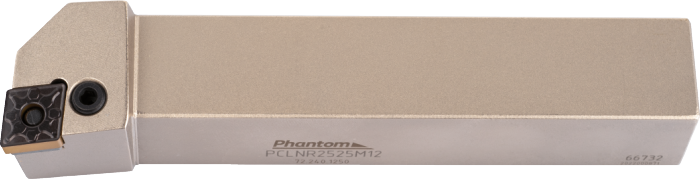

72.240 interchangeable insert holder, 95°
Phantom

72.240 interchangeable insert holder, 95°

for change plates CNMA, CNMG, CNMM, CNGP.<br><br>The renewed change plate holders with nickel-plated surface sometimes have different parts than the old black versions.<br>We indicate this by placing a (B) Black or (S) Silver behind the parts.
102.95 € 102.95 €
excl. VAT

  • Brand
  • Cooling channel
  • Locking socket (5 incl.)
  • Internal/External
  • Tilting Pin (2 included)
  • Clamp Type
  • Assembly Spanner (4 excluded)
  • Washer Plate (1 included)
  • Cutting plate
  • Type
  • Change plate type (7 excl.)
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
Terms and conditions
Contact Us

Specifications

Type PCLNR 1616-H12, PCLNL 2020-K12, PCLNR 2020-K12, PCLNL 2525-M12, PCLNR 2525-M12, PCLNL 3225-P12
Brand Phantom
Cooling channel No
Locking socket (5 incl.) 73.998.0200
Internal/External external
Tilting Pin (2 included) 73.998.0100
Clamp Type P
Assembly Spanner (4 excluded) 73.998.0365
Washer Plate (1 included) 73.998.0230
Cutting plate SW3
Change plate type (7 excl.) CN.. 1204..
