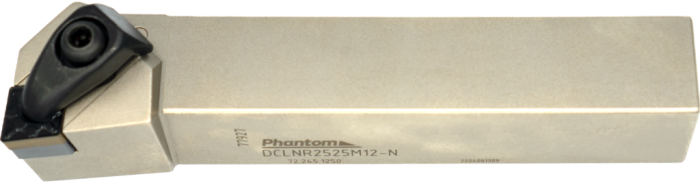

72.245 interchangeable insert holder, 95°
Phantom

72.245 interchangeable insert holder, 95°

for exchange inserts CNMA, CNMG, CNMM, CNGP.<br><br>The redesigned exchange insert holders with nickel-plated surface sometimes have different components than the old black versions.<br>We indicate this by placing a (B) Black or (S) Silver behind the components.
115.71 € 115.71 €
excl. VAT

  • Brand
  • Cooling channel
  • Internal/External
  • Clamp Type
  • Clamp Bolt (1 included)
  • Length (l2)
  • Cutting length
  • Tap number
  • Type
  • Change plate type (5 excl.)
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
Terms and conditions
Contact Us

Specifications

Type DCLNL 2020-K12, DCLNR 2020-K12, DCLNL 2525-M12, DCLNR 2525-M12, DCLNL 3225-P12
Brand Phantom
Cooling channel No
Internal/External external
Clamp Type D
Clamp Bolt (1 included) 73.998.0450(B)/73.998.0451(S)
Length (l2) 32 mm
Cutting length T15IP(B)/SW4(S)
Tap number 73.998.0497(B)/73.998.0032(S)
Change plate type (5 excl.) CN.. 1204..
