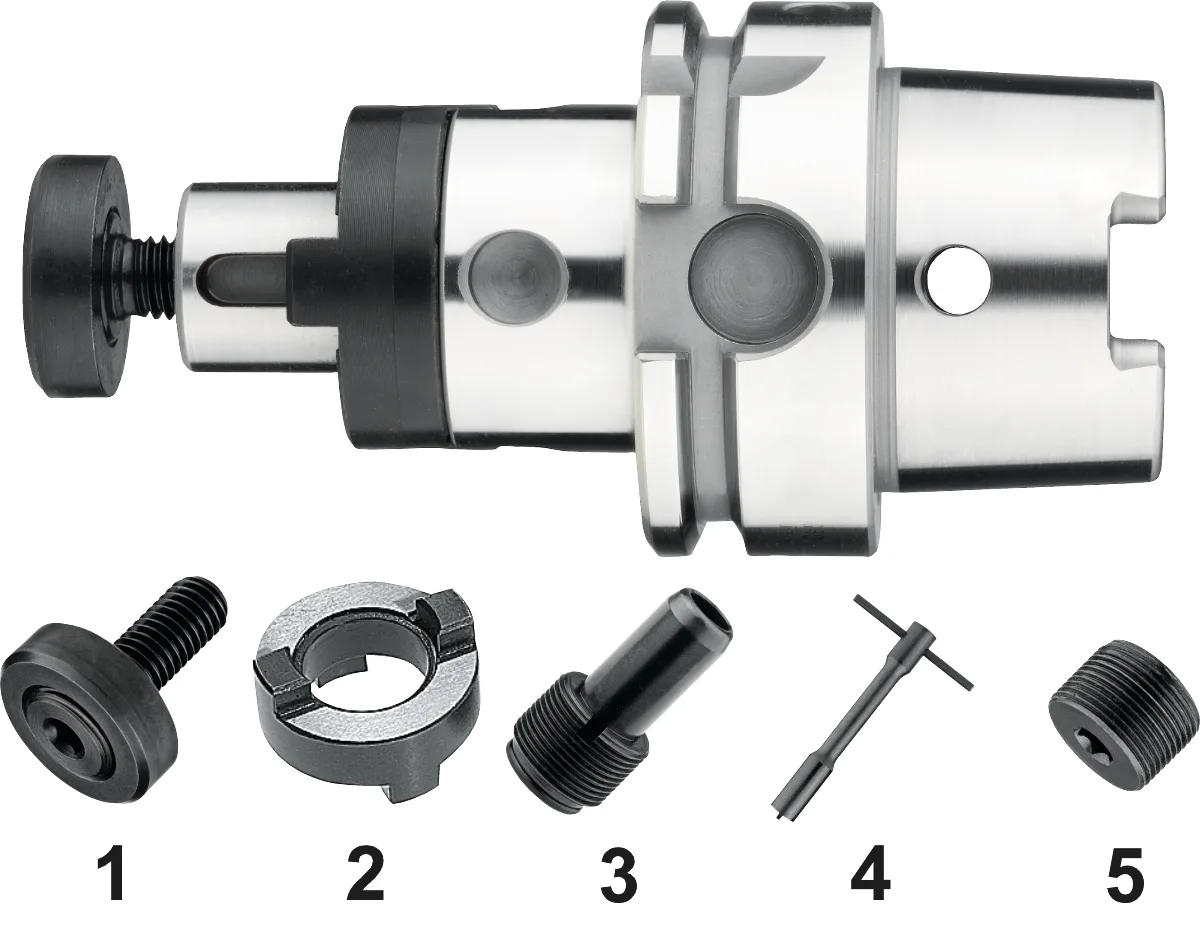

82.327 DIN 6358 Combi-Retention End Mill Holder with Radial and Axial Locking, ISO 12164 (DIN 69893
Phantom

82.327 DIN 6358 Combi-Retention End Mill Holder with Radial and Axial Locking, ISO 12164 (DIN 69893

DIN 6358, with HSK mounting according to ISO 12164 (DIN 69893), surface hardened HRC 58±2, with a tensile strength in the core of min. 950 N/mm², tolerance AT3, runout accuracy of 0,005 mm, balanced G6,3 at 20,000 rpm, incl. bolt
81.38 € 81.38 €
excl. VAT

  • Brand
  • Standard
  • Socket type
  • Diameter Ø (d1)
  • Thread size (M)
  • Coolant Hose (3 excluded)
  • Coolant Hose Key (4 excluded)
  • Coolant Fluid Plug (5 excluded)
  • Mounting (d2)
  • Lengte (l2)
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
Terms and conditions
Contact Us

Specifications

Diameter Ø (d1) 16 mm, 22 mm, 27 mm, 32 mm, 40 mm
Lengte (l2) 60 mm, 65 mm, 70 mm, 100 mm, 160 mm
Brand Phantom
Standard DIN 6358
Socket type ISO 12164 (HSK-A)
Thread size (M) M18X1
Coolant Hose (3 excluded) 84.790.1800
Coolant Hose Key (4 excluded) 84.791.1800
Coolant Fluid Plug (5 excluded) 84.789.1800
Mounting (d2) HSK63A
