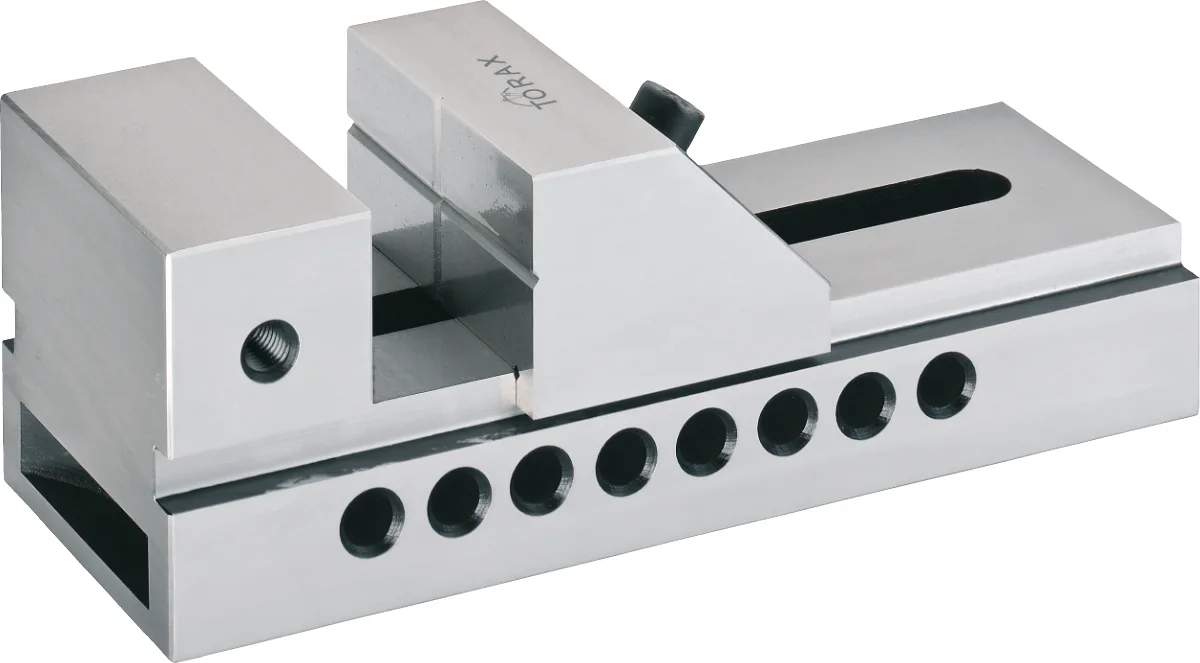

88.350 Precision Grinding Chuck, with top clamping stud and quick adjustment

Name: 88.350 Precision Grinding Chuck, with top clamping stud and quick adjustment
SKU: 88.350.0026
Price: 95.04 EUR
Availability: InStock

<p>class 1, suitable for precision grinding, milling, and measurement work, moving chuck made with horizontal and vertical prism</p>

95.04 €

excl. VAT

Brand
- Phantom
Width (b1)
Shape
Change plate size

Add to cart

Add to wishlist

🚚 Order before 13:30, shipped today

📦 98.5% of articles in stock — call us to be certain of current stock

📞 Technical advice: +32 56 70 15 76

Terms and conditions

Question about this product? Availability, an alternative or a quote for larger volumes — we reply quickly. Ask a question / request a quote ↓

Specifications

Width (b1)	26 mm, 36 mm, 50 mm, 73 mm, 100 mm, 125 mm
Brand	Phantom
Shape	0,005
Change plate size	0,005

Alternative Products

These other products might interest you

Artikelnummer	88.350.0026
Maximaal spanbereik (a max)	22 mm
Hoogte (h1)	29 mm
Hoogte (h2)	9,15 mm
Lengte (l1)	65,4 mm
Tolerantie a (Tol. a)	0,007
Tolerantie b (Tol. b)	0,005
Tolerantie c (Tol. c)	0,005
Nettogewicht	0,258 kg

Artikelnummer	88.350.0036
Maximaal spanbereik (a max)	40 mm
Hoogte (h1)	45 mm
Hoogte (h2)	20 mm
Lengte (l1)	100 mm
Tolerantie a (Tol. a)	0,005
Tolerantie b (Tol. b)	0,005
Tolerantie c (Tol. c)	0,005
Nettogewicht	0,774 kg

Artikelnummer	88.350.0050
Maximaal spanbereik (a max)	65 mm
Hoogte (h1)	50 mm
Hoogte (h2)	25 mm
Lengte (l1)	140 mm
Tolerantie a (Tol. a)	0,005
Tolerantie b (Tol. b)	0,005
Tolerantie c (Tol. c)	0,005
Nettogewicht	1,7 kg

Artikelnummer	88.350.0073
Maximaal spanbereik (a max)	100 mm
Hoogte (h1)	67 mm
Hoogte (h2)	35 mm
Lengte (l1)	190 mm
Tolerantie a (Tol. a)	0,005
Tolerantie b (Tol. b)	0,005
Tolerantie c (Tol. c)	0,005
Nettogewicht	4 kg

Artikelnummer	88.350.0100
Maximaal spanbereik (a max)	125 mm
Hoogte (h1)	90 mm
Hoogte (h2)	45 mm
Lengte (l1)	245 mm
Tolerantie a (Tol. a)	0,005
Tolerantie b (Tol. b)	0,005
Tolerantie c (Tol. c)	0,005
Nettogewicht	9,8 kg

Artikelnummer	88.350.0125
Maximaal spanbereik (a max)	160 mm
Hoogte (h1)	100 mm
Hoogte (h2)	50 mm
Lengte (l1)	285 mm
Tolerantie a (Tol. a)	0,007
Tolerantie b (Tol. b)	0,005
Tolerantie c (Tol. c)	0,005
Nettogewicht	15,9 kg
