Drills

Sort By Sort By: Featured
380 product families
[11.100.0200] 11.100 ECO HSS rolled stub drill DIN 1897 (2 mm)

11.100 ECO HSS rolled stub drill DIN 1897

International Tools ECO HSS twist drill to DIN 1897: rolled stub-length construction, cylindrical shank and 118° point angle. Chemically blackened surface.

Select the drill diameter, then check the flute length, overall length and shank diameter of that article. Point geometry, finish and packaging can vary by size; use the selected article specifications.
Price per piece Only orderable in the indicated pack quantity.

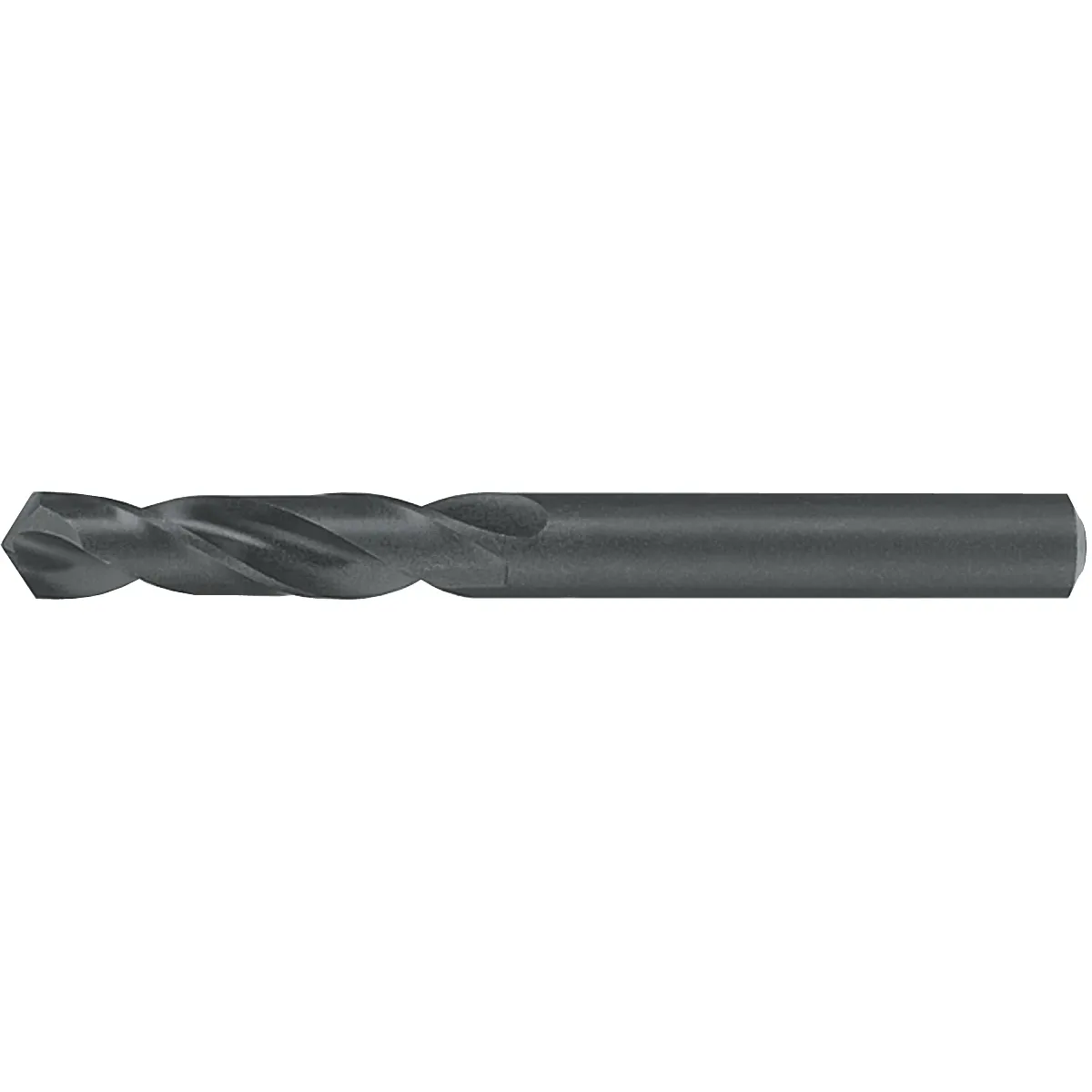

[11.110.0100] 11.110 ECO HSS Spiral drill DIN 1897 (1 mm)

11.110 ECO HSS Spiral drill DIN 1897

International Tools ECO HSS twist drill to DIN 1897, with stub length, cylindrical shank and 118° point angle. Chemically blackened surface; split point from 3 mm.

Select the drill diameter, then check the flute length, overall length and shank diameter of that article. Point geometry, finish and packaging can vary by size; use the selected article specifications.
Price per piece Only orderable in the indicated pack quantity.
[11.120.0200] 11.120 ECO HSS Spiral drill DIN 3126-DIN ISO 1173 C6.3 1/4″ (6.35 mm) hexagon socket drive (2 mm)

11.120 ECO HSS Spiral drill DIN 3126-DIN ISO 1173 C6.3 1/4″ (6.35 mm) hexagon socket drive

The IT ECO HSS Spiral Drill is equipped with a 1/4" hexagonal bit shank (DIN 3126 / ISO 1173 C6.3). This shank prevents the drill from slipping in the drill chuck and allows for quick change in standard bit holders. The extra short, blank polished version with a 118° tip angle is extremely suitable for various assembly and mounting work in metalworking.
[11.122.0200] 11.122 ECO HSS Spiral drill DIN 3126-DIN ISO 1173 E6.3 1/4″ (6.35 mm) hexagon socket drive (2 mm)

11.122 ECO HSS Spiral drill DIN 3126-DIN ISO 1173 E6.3 1/4″ (6.35 mm) hexagon socket drive

The International Tools ECO HSS Spiral Drill DIN 3126-DIN ISO 1173 E6.3 is the ideal choice for professional metalworkers. The 1/4" (6.35 mm) hexagonal bit shank makes this drill quickly interchangeable and ensures that it does not slip in the drill chuck. Furthermore, the drill is suitable for impact screwdrivers. The extra short, blank polished version with a 118° tip angle ensures precise and efficient drilling in various materials.
[11.130.0100] 11.130 HSS Spiral drill DIN 1897 (1 mm)

11.130 HSS Spiral drill DIN 1897

Phantom HSS twist drill to DIN 1897, with stub length, cylindrical shank and 118° point angle. Split point from 1.6 mm; steam-tempered finish from 2 mm.

Select the drill diameter, then check the flute length, overall length and shank diameter of that article. Point geometry, finish and packaging can vary by size; use the selected article specifications.
[11.130.0300E] 11.130E HSS Spiral drill DIN 1897 in case (3 mm)

11.130E HSS Spiral drill DIN 1897 in case

<p>DIN 1897, cylindrical shank, extra short ground version, with cross drilling from 1.6 mm, top angle 118°</p>
[11.142.0250] 11.142 ECO PRO HSS Double-sided spiral drill (2,5 mm)

11.142 ECO PRO HSS Double-sided spiral drill

<p>The International Tools ECO PRO HSS Spiral Drill Double-sided offers professional metalworkers a reliable and cost-effective solution. This ground drill with cylindrical shank and extra short version features a cross drilling, making centering unnecessary. The 135° top angle ensures precision. The blank ground surface contributes to durability and optimal performance, enabling efficient drilling in various materials.</p>
Price per piece Only orderable in the indicated pack quantity.
[11.145.0200] 11.145 HSS Double-sided spiral drill (2 mm)

11.145 HSS Double-sided spiral drill

<p>The Phantom HSS Spiral Drill Double-sided is a ground, versatile drill for professional metalworkers. With a blank ground surface and extra short version, this drill is ideal for sheet material. The cross drilling from 2.5 mm and 135° top angle make centering unnecessary and ensure an accurate start. The cylindrical shank ensures stability during drilling. This drill combines efficiency with precision.</p>

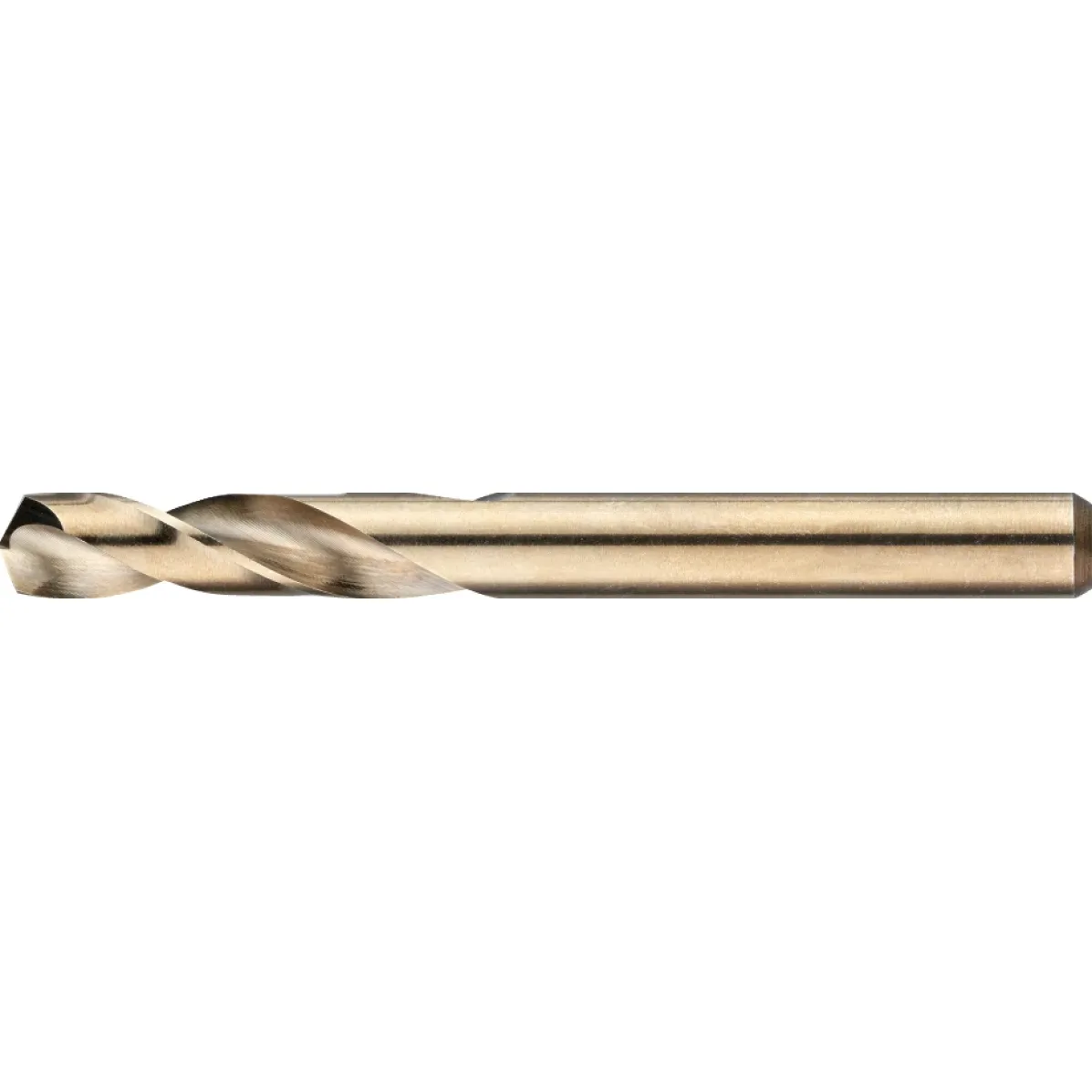

[11.150.0100] 11.150 ECO PRO HSS-E Spiral drill DIN 1897 (1 mm)

11.150 ECO PRO HSS-E Spiral drill DIN 1897

International Tools ECO PRO HSS-E twist drill to DIN 1897, with stub length, cylindrical shank, bronze finish and 135° point angle. Split point from 3 mm.

Select the drill diameter, then check the flute length, overall length and shank diameter of that article. Point geometry, finish and packaging can vary by size; use the selected article specifications.
Price per piece Only orderable in the indicated pack quantity.
[11.155.0200] 11.155 HSS-E Spiral drill DIN 1897 with three-flat shank (2 mm)

11.155 HSS-E Spiral drill DIN 1897 with three-flat shank

<p>The Phantom HSS-E Spiral Drill DIN 1897 with three-flute shank is the standard drill for stainless steel and general use. The bronze-coated surface and extra short version guarantee optimal performance. The cross drilling and 135° top angle ensure self-centering capability and accuracy. Thanks to the three-flute shank, this drill does not slip in the drill chuck, ensuring a stable and efficient operation in various materials.</p>

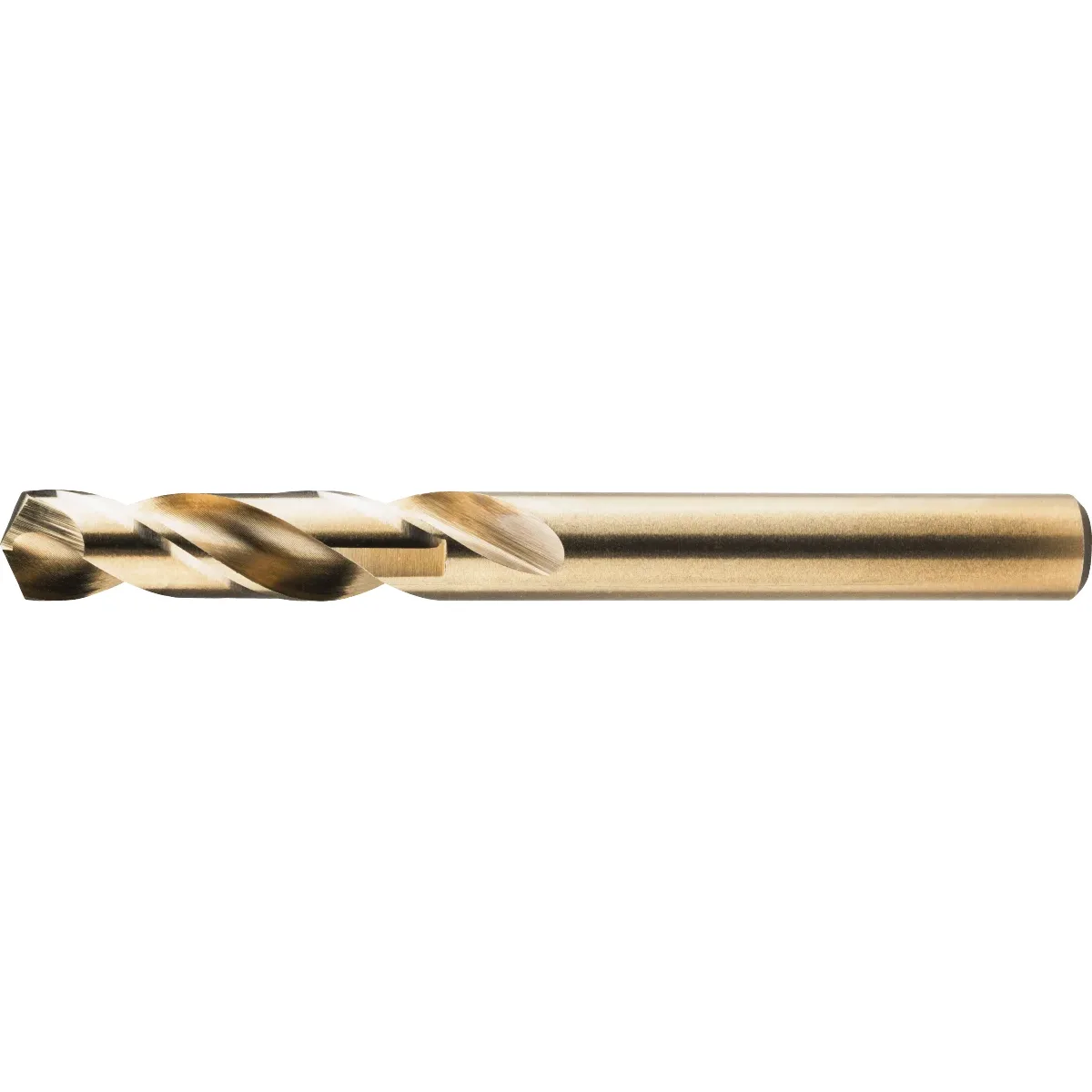

[11.160.0100] 11.160 HSS-E Spiral drill DIN 1897 (1 mm)

11.160 HSS-E Spiral drill DIN 1897

Phantom HSS-E twist drill to DIN 1897, with stub length, cylindrical shank, bronze finish and 135° point angle. Split point from 2 mm.

Select the drill diameter, then check the flute length, overall length and shank diameter of that article. Point geometry, finish and packaging can vary by size; use the selected article specifications.
[11.160.0300E] 11.160E HSS-E Spiral drill DIN 1897 in case (3 mm)

11.160E HSS-E Spiral drill DIN 1897 in case

DIN 1897, cylindrical shank, extra short version, with cross-point from 2.0 mm, 135° point angle, for general use
[11.161.0100] 11.161 HSS-E Spiral drill DIN 1897 TiN (1 mm)

11.161 HSS-E Spiral drill DIN 1897 TiN

The Phantom HSS-E Spiral Drill DIN 1897 TiN is an extra short drill with a cylindrical shank and a wear-resistant TiN coating for significantly increased service life. Suitable for general use, especially in plate material. From a diameter of 2.0 mm, this drill features a precise cross-point and a 135° point angle, resulting in superior self-centering properties and accurate positioning without pre-drilling. The extra short version contributes to increased stability during the machining process.
[11.167.0100] 11.167 HSS-E Spiral drill DIN 1897 TiAlN, stainless steel (1 mm)

11.167 HSS-E Spiral drill DIN 1897 TiAlN, stainless steel

Phantom HSS-E Spiral Drill DIN 1897 TiAlN, stainless steel<br><br>The SS specialist for machining stainless steel, Hastelloy, and Inconel. The extra short version according to DIN 1897 ensures maximum stability. The extra reinforced core, combined with the TiAlN coating, guarantees a long service life and heat resistance. Thanks to the 130° point angle with cross-point, you drill precisely and with less force.
[11.168.0100] 11.168 HP2 UNI HSS-E Spiral drill DIN 1897 TiN (1 mm)

11.168 HP2 UNI HSS-E Spiral drill DIN 1897 TiN

The Phantom HP2 UNI HSS-E Spiral Drill DIN 1897 TiN is a universal high-performance drill for production purposes. The TiN-coated surface guarantees a longer service life and optimal performance. The extra short polished version with cylindrical shank and four-flute point ensures precision and stability. The 118° point angle improves centering. This drill delivers reliable results for professional metalworkers.
[11.170.0200] 11.170 HM-tip Spiral drill DIN 8037 (2 mm)

11.170 HM-tip Spiral drill DIN 8037

<p>The Phantom HM-tip Spiral Drill DIN 8037 is a problem solver for professional metalworkers. This drill, with a cylindrical shank and extra short version, is designed for hand and machine use, ideal for countersinking bolts. The HM-point guarantees extreme hardness and durability. The 3° rake angle and 120° point angle ensure optimal cutting geometry, resulting in reliable performance and accurate results, even under demanding conditions. The ground surface contributes to a long service life.</p>
[11.174.0100] 11.174 HSS-E Spiral drill DIN 1897 for automatic machines (stainless) steel, TiAlN (1 mm)

11.174 HSS-E Spiral drill DIN 1897 for automatic machines (stainless) steel, TiAlN

<p>The Phantom HSS-E Spiral Drill DIN 1897 TiAlN is designed for production purposes in steel and stainless steel. The TiAlN-coated surface guarantees a longer service life and optimal performance. The cylindrical shank and extra short version, combined with a strong spiral angle and 130° point angle, ensure efficient chip removal. The drill is equipped with a cross slot up to 3 mm and an S-slot from 3 mm, enabling precise centering and more drilled holes.</p>
[11.200.0100] 11.200 Hard metal Spiral drill DIN 6539 (1 mm)

11.200 Hard metal Spiral drill DIN 6539

<p>The Phantom Hardmetal (VHM) Spiral Drill according to DIN 6539 is designed for professional metalworkers who require high precision and stability. As an extra short version, this VHM drill offers maximum rigidity, resulting in very accurate holes.</p>
<p>The special multi-flute cross slot provides excellent self-centering properties, allowing the drill to position itself directly and making pre-drilling unnecessary. The 118° point angle and the ground surface contribute to a stable drilling process. This versatile drill with a cylindrical shank is the ideal choice for reliable performance in diverse materials.</p>
[11.204.0100] 11.204 Hard metal Spiral drill DIN 6539 TiAlN (1 mm)

11.204 Hard metal Spiral drill DIN 6539 TiAlN

<p>The Phantom Hardmetal (VHM) Spiral Drill according to DIN 6539 is a high-quality precision tool, designed for maximum performance. The extra short ground version offers outstanding rigidity, resulting in very accurate holes and minimal vibration.</p>
<p>The advanced TiAlN coating protects against wear under high thermal load and guarantees a significantly longer service life. The special multi-flute cross slot (118° point angle) ensures perfect self-centering properties, making pre-drilling unnecessary.</p>
<p>This versatile VHM drill with a cylindrical shank is the ideal, stable solution for repetitive and reliable drilling in diverse materials.</p>
[11.240.0300] 11.240 Hard metal Spiral drill DIN 6539 3xD 3 cutting edges (3 mm)

11.240 Hard metal Spiral drill DIN 6539 3xD 3 cutting edges

<p>The Phantom Hardmetal (VHM) Spiral Drill according to DIN 6539 is a specialized precision tool, uniquely designed with three cutting edges. This construction offers superior stability and guarantees always perfectly round holes.</p>
<p>This VHM drill, executed as a short version with a cylindrical shank, is the ideal problem solver for correcting existing holes; it makes uneven holes round again. The special 150° point angle ensures stable cutting and excellent centering. The ground VHM material guarantees a long service life and reliable performance up to 3xD bore depth. This tool is the choice for maximum dimensional accuracy.</p>
[11.245.0500] 11.245 Hard metal Spiral drill DIN 6537-L 5xD High-Feed, with coolant channel, AlCrN-X, 3 cutting edges (5 mm, 6 mm)

11.245 Hard metal Spiral drill DIN 6537-L 5xD High-Feed, with coolant channel, AlCrN-X, 3 cutting edges

<p>The Phantom VHM Spiral Drill DIN 6537-L is a high-performance three-edge cutter, developed for production purposes and a maximum swarf volume. The drill, with internal cooling channels and a top angle of 140°, is suitable for hole depths up to 5xD. The advanced AlCrN-X coating offers extreme wear resistance, resulting in superior tool life at the highest feed rates.</p>

Drill bits for metal, masonry and wood

The complete drill programme from Phantom and International Tools: 9,644 versions from Ø 0.1 to 100 mm. Metal drills, concrete drills, masonry drills, wood drills, glass drills, socket drills, countersinks, multi-purpose drills, annular cutters and drill sets.

  • HSS, HSS-E (8%), HSS-E PM and solid carbide, also with TiN/TiAlN coating or coolant channel
  • Shanks: cylindrical, hex, SDS-Plus, SDS-Max, Weldon and Morse taper
  • To 33 different DIN standards, from DIN 222 to DIN 8379
  • Drill sets in practical cassettes, in 0.1 or 0.5 mm increments

Choose your subcategory or filter by diameter, material and shank. Not sure which drill suits your application? Call us — 98.5% of items are in stock.
