Drill chucks

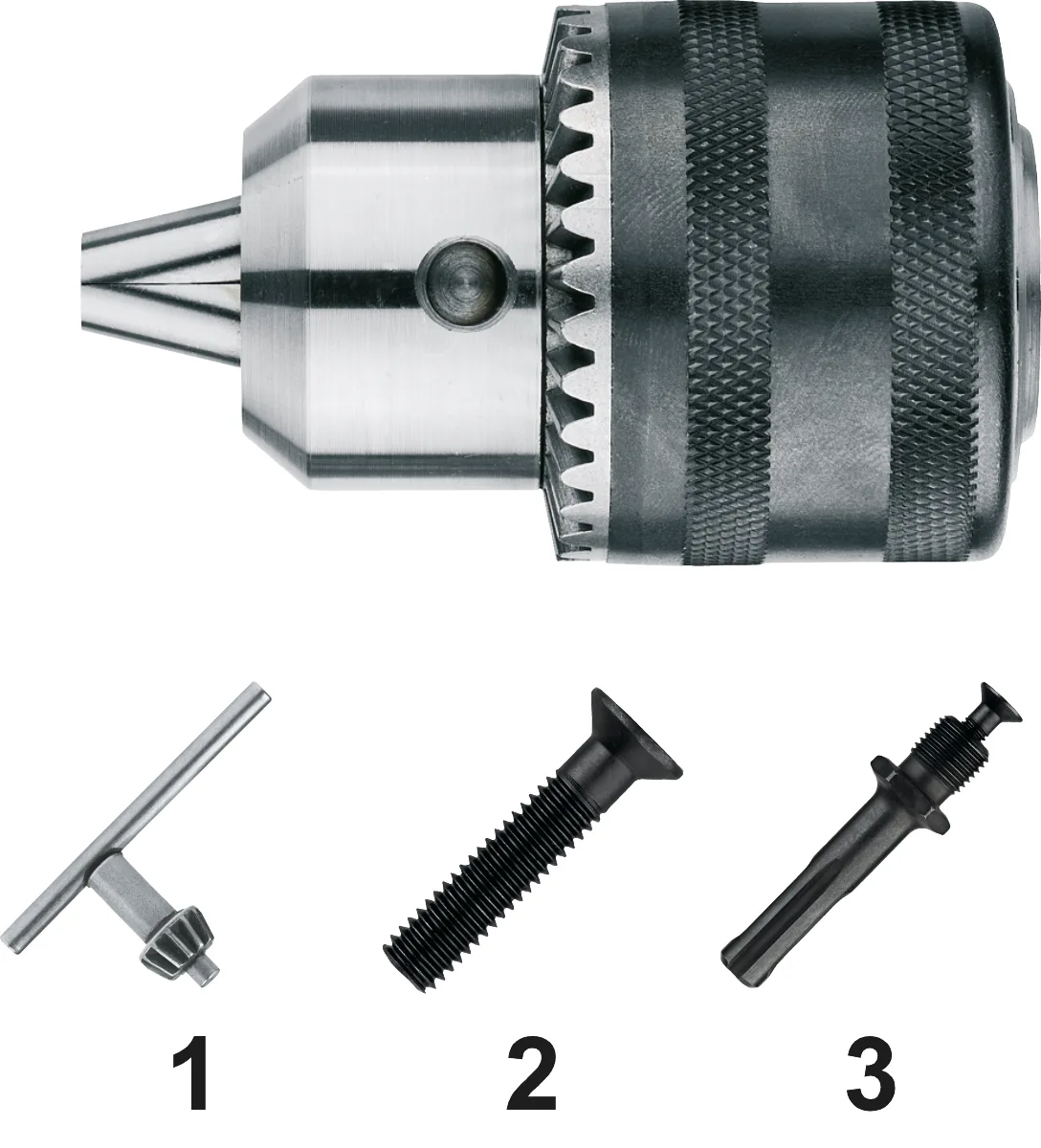

The Phantom Toothed Chuck Key Holder is the classic, reliable and affordable choice for hand drill machines. This chuck holder is tightened with the supplied key, providing very high and certain clamping force, which prevents the drill from slipping. The robust, industrial and proven construction makes this toothed chuck holder a durable choice for general drilling work in any professional workshop.

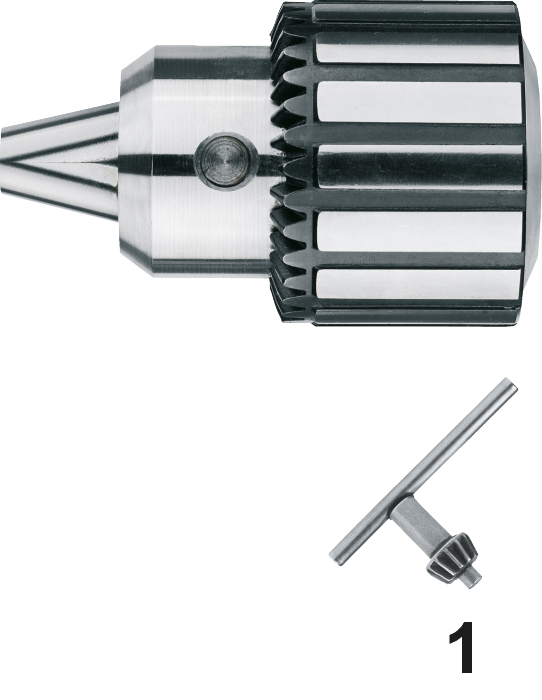

The Phantom Toothed Chuck Key Holder in reinforced version is a Heavy-Duty drill bit, specially designed for stationary machines such as the column drill machine. The traditional toothed chuck spanner, operated with a key, provides exceptionally high and reliable clamping force. This robust industrial construction guarantees durability and high rotational accuracy under the heavy load typical of machine use.

nan

The Phantom Quick Chuck Drill Holder with clamping force locking is a reliable and impact-resistant drill bit for professional use. It is suitable for both clockwise and counterclockwise rotation and the impact drilling mode, making it highly versatile. The design allows for quick drill bit changes. The 13 mm version is equipped with a patented collet that locks the clamping force and guarantees the impact resistance, ensuring the drill bit remains firmly clamped under all conditions.

The Phantom Quick Chuck Drill Holder is a Heavy-Duty, impact-resistant drill bit, manufactured in a robust metal construction. This drill bit is designed for heavy professional use and is suitable for clockwise and counterclockwise rotation and the impact drilling mode. The mechanism allows for quick drill bit changes. The 13 mm version features a patented collet that locks the clamping force and guarantees the impact resistance, ensuring the drill bit does not come loose even under heavy impact drilling applications.

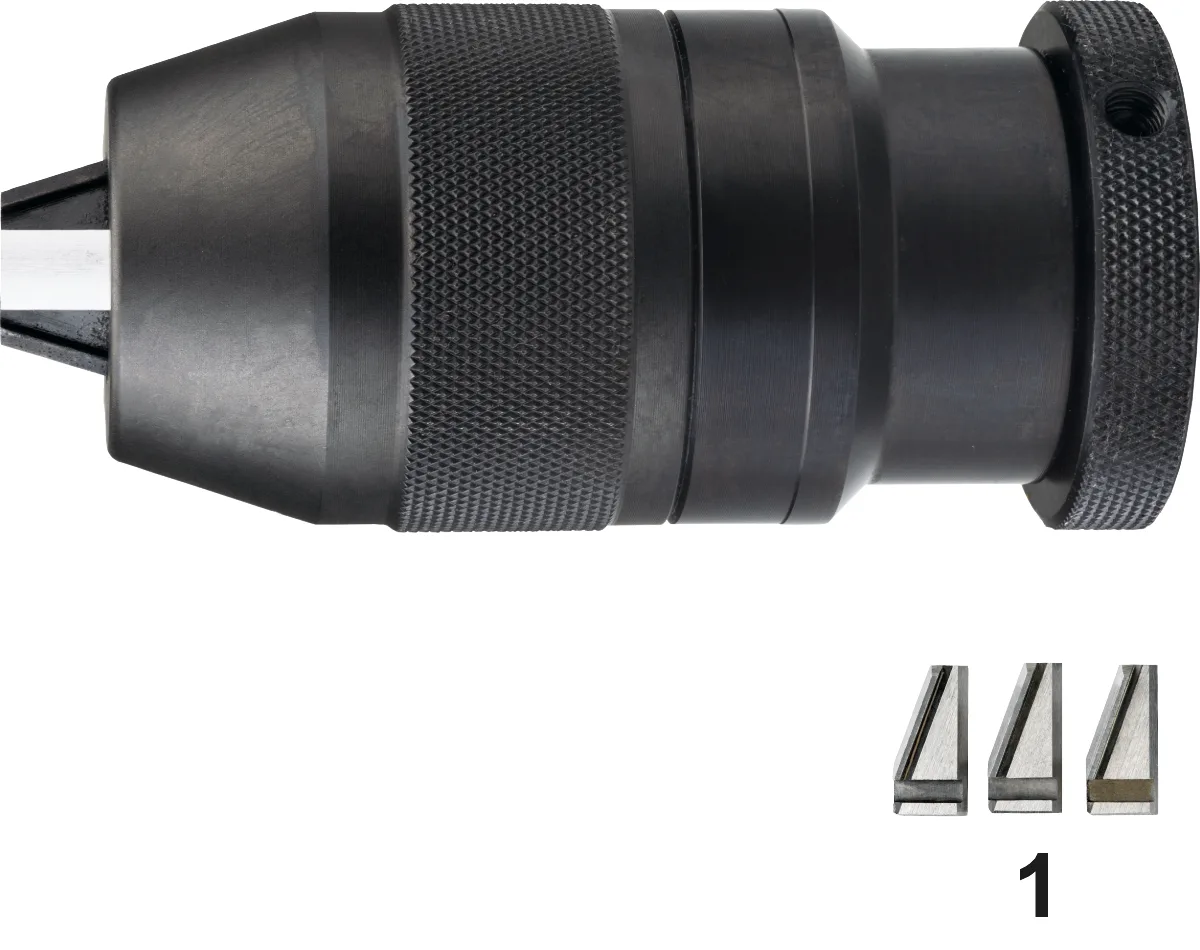

The Phantom Self-Clamping Drill Holder, type A, is an industrial drill bit in standard version, developed for the demanding metalworker. Its high-quality self-clamping mechanism ensures reliable and powerful clamping of the drill bit and allows for quick drill bit changes without additional tools. This increases productivity and efficiency in every professional workshop.

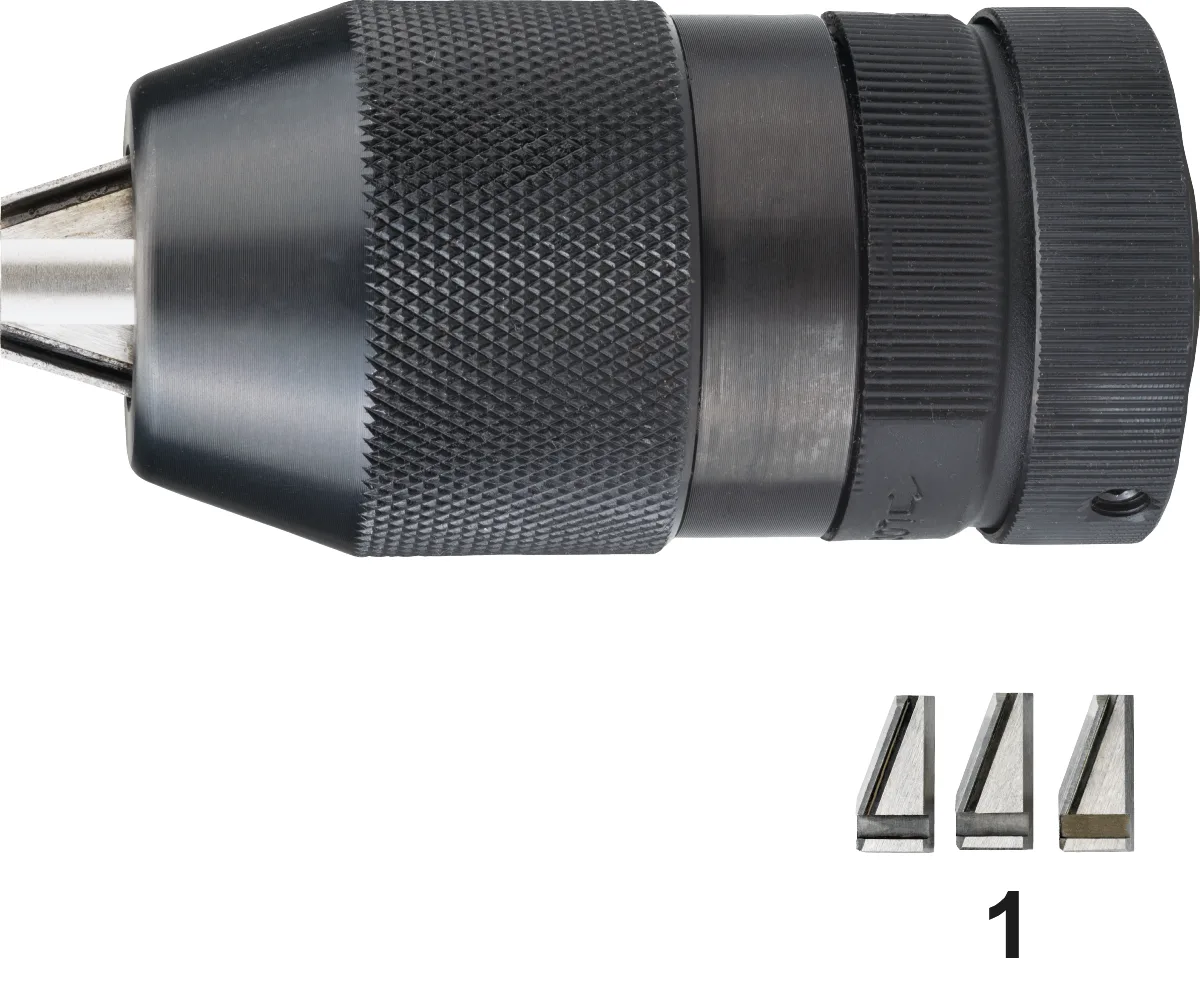

The Phantom Self-Tensioning Drill Chuck, type A, is a robust, industrial-grade drill bit holder in standard configuration, equipped with tensioning force locking. This drill chuck is designed for the professional metalworker who demands maximum reliability. The self-tensioning mechanism allows for quick drill bit changes, while the tensioning force locking prevents the drill bit from loosening during heavy-duty applications.

The Phantom Self-Tensioning Precision Drill Chuck, type P, is a heavy-duty drill bit holder, specially developed for the most precise tensioning work. This precision drill chuck guarantees a very high roundness accuracy of 0,04 mm. The robust self-tensioning mechanism facilitates quick drill bit changes and ensures maximum clamping force under the heaviest industrial conditions.

The Phantom Self-Tensioning Precision Drill Chuck, type XP, is a heavy-duty drill bit holder, developed for the heaviest and most precise machining operations. This precision drill chuck guarantees a very high roundness accuracy of 0,04 mm. The design combines the convenience of quick drill bit changes with the assurance of extra clamping force thanks to the included tensioning key, which prevents the drill bit from slipping under high load.

The Phantom Self-Tensioning Precision Drill Chuck, type XP, is a heavy-duty drill bit holder with an integrated Morse taper (MT) connection according to DIN 228-B. This precision drill chuck is designed for the heaviest industrial applications and guarantees a very high roundness accuracy of 0,04 mm. It combines quick drill bit changes with the possibility of extra clamping force via the included tensioning key.

with a very high roundness accuracy of 0,04 mm, with SK connection according to DIN 2080, complete with tensioning key.<br><br>NOTE! This product is out of stock.

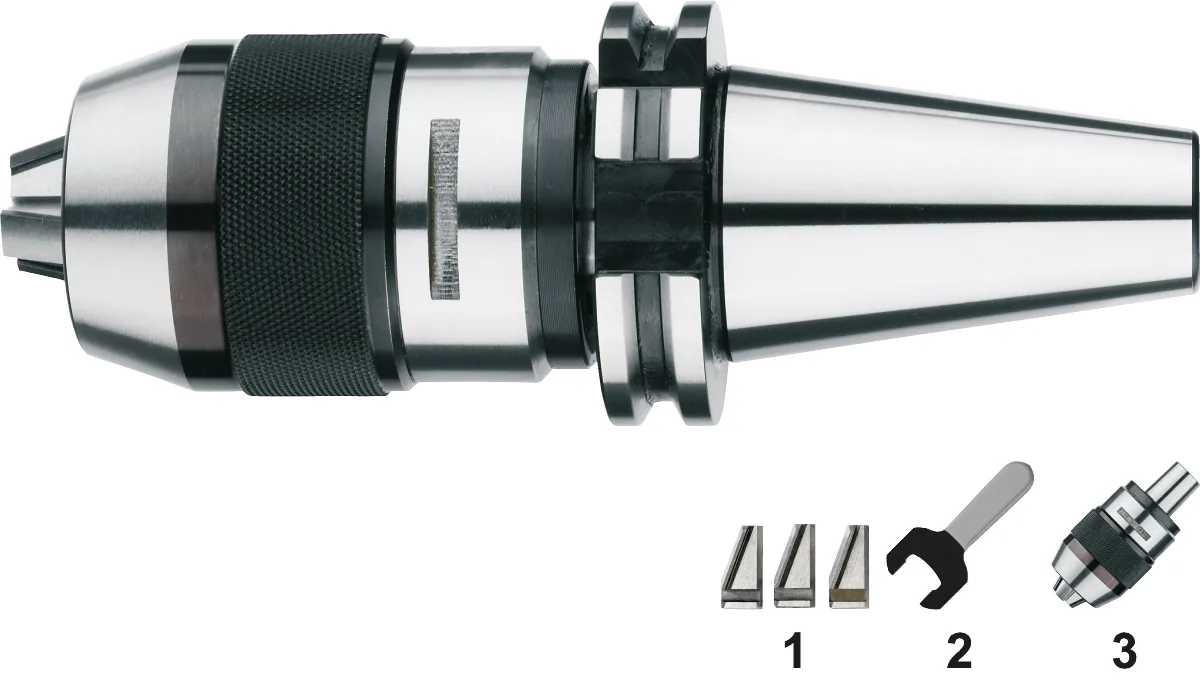

with an extremely high circular runout accuracy of 0.04 mm, with SK mounting according to ISO 7388-1 (DIN 69871), complete with chuck key.<br><br>ATTENTION! This product is discontinued.

with an extremely high circular runout accuracy of 0.04 mm, with mounting according to ISO 7388-2 (MAS-BT), complete with chuck key.<br><br>ATTENTION! This product is discontinued.

with an extremely high circular runout accuracy of 0.04 mm, with VDI mounting according to DIN 69880, complete with chuck key.<br><br>ATTENTION! This product is discontinued.

patented gear mechanism for a maximum clamping force of 110 Nm, with an extremely high circular runout accuracy of 0.05 mm, with SK mounting according to ISO 7388-1 (DIN 69871).<br><br>ATTENTION! This product is discontinued.

The Phantom Ultra Precision Drill Chuck, type XPB, with DIN 2080 mounting, is developed for the most demanding clamping requirements. Its slim design ensures optimal accessibility when drilling complex workpieces and deeper holes. This precision drill chuck combines the convenience of quick tool changes with a clamping force up to 50 Nm for maximum grip, preventing drill slippage. The extremely high circular runout accuracy of 0.05 mm guarantees exceptionally precise drilling results.

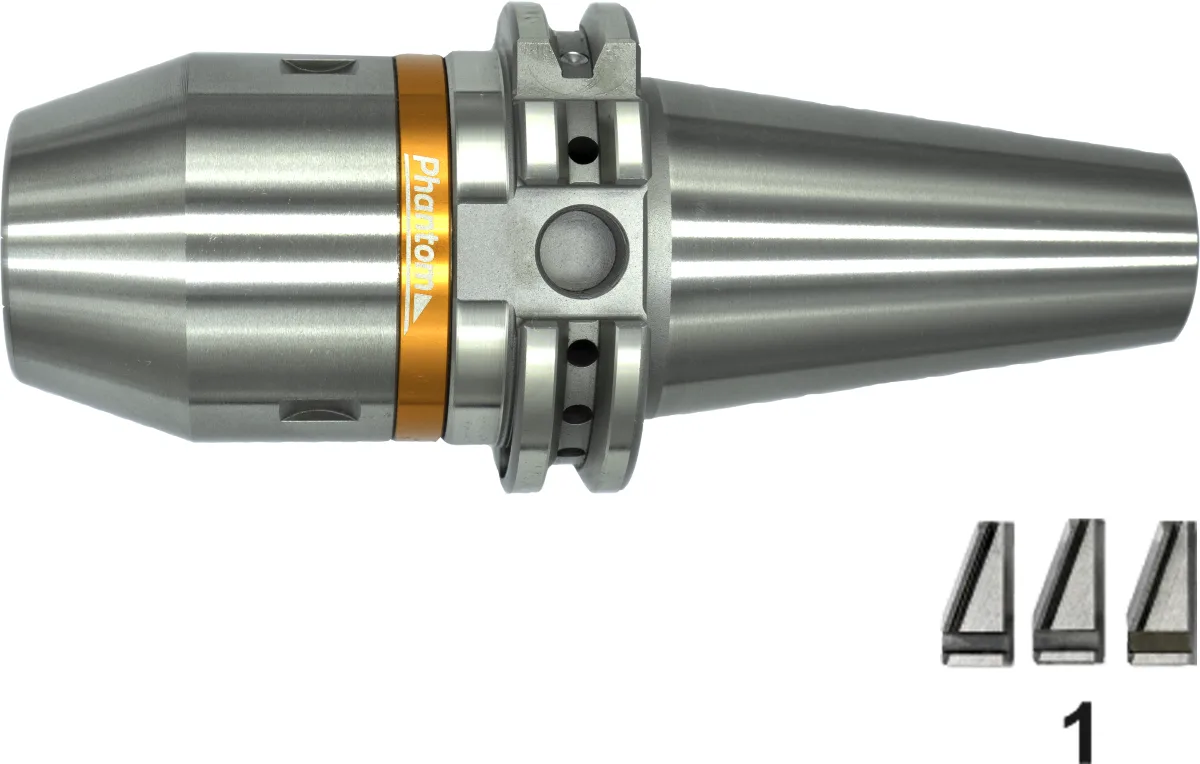

The Phantom Ultra Precision Drill Holder, type XPS, with SK taper according to ISO 7388-1 (DIN 69871), is developed for the highest precision in CNC applications. Its slim design ensures optimal access to the workpiece and minimises contour interference. This drill holder facilitates quick drill changes and provides a clamping force of up to 50 Nm for maximum grip and process reliability. The extremely high circular run-out accuracy of only 0.02 mm guarantees the most accurate results.

The Phantom Ultra Precision Drill Holder, type XPS, with MAS-BT taper according to ISO 7388-2, is optimised for the highest precision on CNC machines. Its slim design offers superior access to complex workpieces and minimises interference. This drill holder combines the convenience of quick drill changes with a powerful clamping force of up to 50 Nm for maximum grip. The guaranteed, extremely high circular run-out accuracy of only 0.02 mm ensures perfect drilling results.

The Phantom Ultra Precision Drill Holder, type XPS, with HSK taper according to ISO 12164 (DIN 69893), is designed for high-speed CNC machining where maximum precision is required. Its slim design offers superior access to the workpiece and minimises interference. This drill holder combines the convenience of quick drill changes with a powerful clamping force of up to 50 Nm for maximum grip, even at high spindle speeds. The extremely high circular run-out accuracy of 0.02 mm ensures perfectly sized, dimensionally accurate holes.

<p>spare part for drill holder type XP, article no. 81.303, 81.304, 81.306 and 81.308.<br><br>NOTE! This product is discontinued.</p>
