Phantom

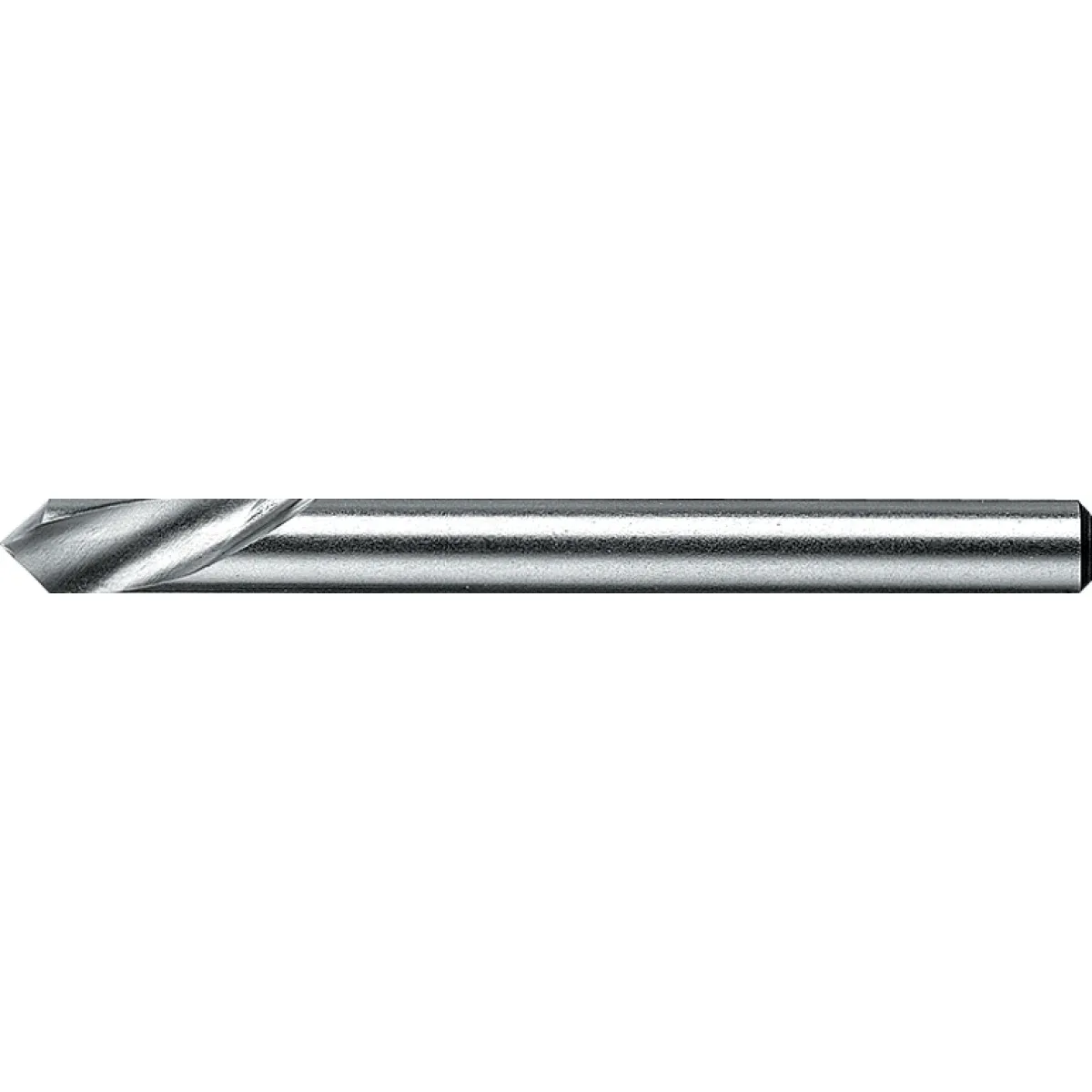

19.956 HSS-E NC Left-hand Center Drill, 90°

The Phantom HSS-E NC-Centerdrill (90°) is a specialized tool for precise centering. This left-cutting drill enables unique applications. Manufactured from HSS-E (cobalt-alloyed), this centerdrill offers excellent heat and wear resistance and is therefore also suitable for stainless steel and other tough materials.<br><br>The 90° point angle provides an accurate spot and a slight chamfer in one step. It is the ideal preparation for non-self-centering drills, as it creates a perfect starting point and positions the subsequent drill exactly.
52.58 € 52.58 €
excl. VAT

  • Brand
  • Threading
  • Hole diameter (d1)
  • Tool material
  • Cooling channel
  • Surface
  • Socket type
  • Cutting direction
  • Tolerance d1 (Tol. d1)
  • Tip angle
  • Wrench
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
General B2B terms and conditions of sale

Specifications

Hole diameter (d1) 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm
Brand Phantom
Threading Tapered shank
Tool material HSS-E
Cooling channel No
Surface Ground blank
Socket type Cylindrical
Cutting direction Left
Tolerance d1 (Tol. d1) h6
Tip angle 90°
Wrench h6
