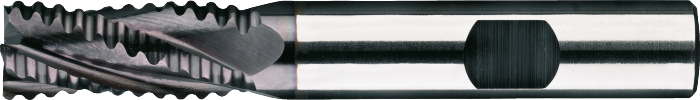

35.128 HSS-E PM rough end mill DIN 844-B short, type NR, TiAlN
Phantom

35.128 HSS-E PM rough end mill DIN 844-B short, type NR, TiAlN

<p>The Phantom HSS-E PM Roughing Drill is made of high-grade PM steel for optimal results. Because the drill is center-cutting, you can easily perform a drilling operation. The round tooth combined with the TiAlN coating guarantees you a long service life in soft steel types. Thanks to the cylindrical shank with Weldon clamping surface (DIN 1835-B), you benefit from fast and secure clamping. This ground tool offers you maximum process reliability.<br><br>ATTENTION! This product is discontinued.</p>
74.69 € 74.69 €
excl. VAT

  • Brand
  • Tool material
  • Cooling channel
  • Standard
  • Surface
  • Socket type
  • Tolerance d1 (Tol. d1)
  • Number of cutting edges (z)
  • Diameter Ø (d1)
  • Type
  • Wrench
  • Shaft Ø (d2)
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
Terms and conditions
Contact Us

Specifications

Diameter Ø (d1) 22 mm, 24 mm
Shaft Ø (d2) 20 mm, 25 mm
Brand Phantom
Tool material HSS-E PM
Cooling channel No
Standard DIN 844-B
Surface TiAlN
Socket type Weldon (DIN 1835-B)
Tolerance d1 (Tol. d1) js14
Number of cutting edges (z) 4
Type 30°
Wrench h6
