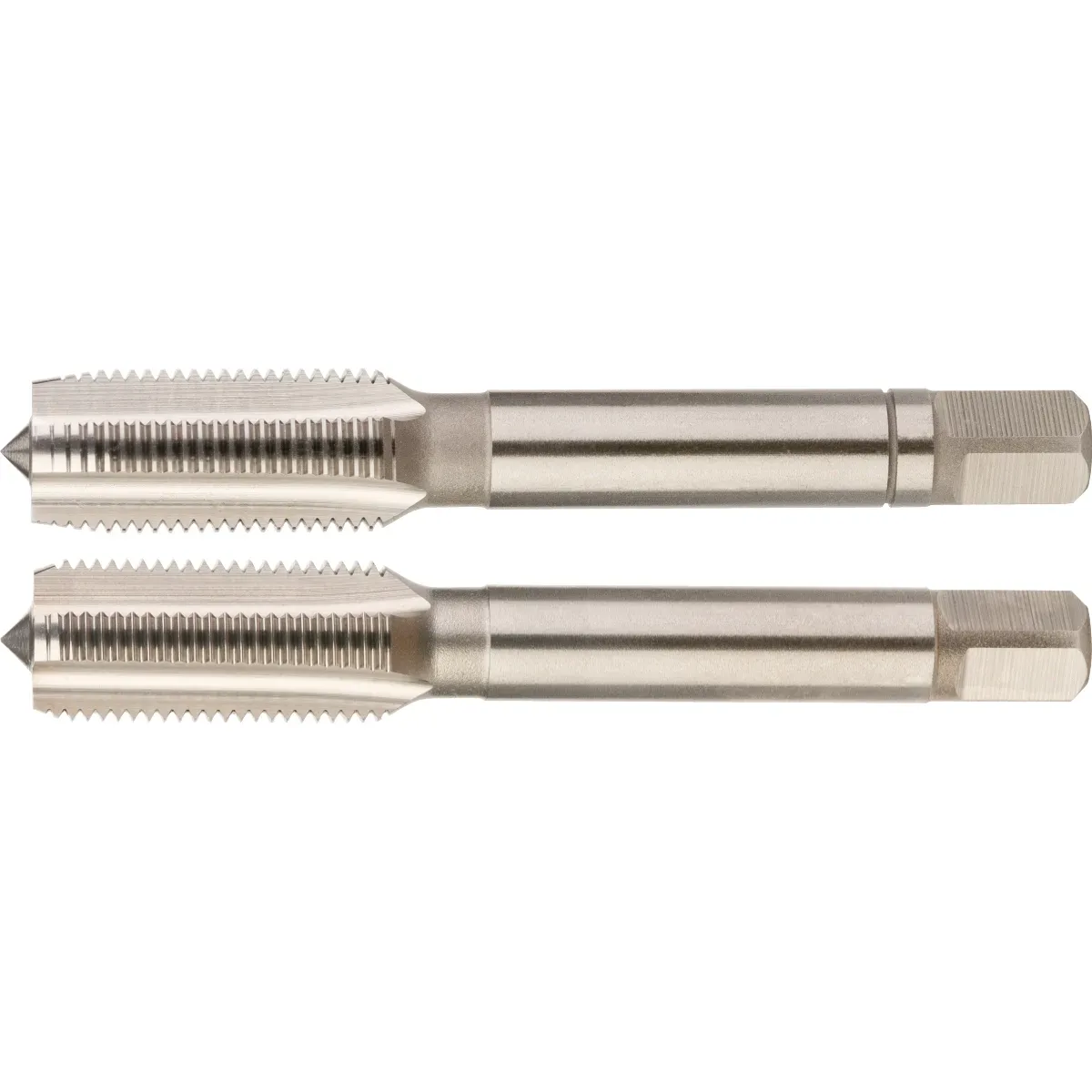

21.405 HSS Hand taps DIN 5157 set of 2 pieces
Phantom

21.405 HSS Hand taps DIN 5157 set of 2 pieces

<p>Professional Phantom HSS Hand Taps Set, DIN 5157 compliant, 2-piece, specifically for cutting G (BSP - British Standard Pipe) pipe thread. Made from high-grade high-speed steel (HSS) for reliable performance and long service life in general steel applications.</p>
<p>The set consists of a pilot and a finishing tap. This 2-step system (Tap No. 1 and No. 2), as defined in the DIN 5157 standard, progressively divides the cutting load. The pilot tap centers and pre-cuts the profile, after which the finishing tap cuts the G-thread to full, nominal depth. Ideal for precise manual tapping.</p>
124.10 € 124.10 €
excl. VAT

  • Brand
  • Tool material
  • Standard
  • Surface
  • Socket type
  • Cutting direction
  • Thread diameter (d1)
  • Shaft Ø (d2)
  • Square (sw)
  • Pitch-Inch (TPI)
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
General B2B terms and conditions of sale
Contact Us

Specifications

Thread diameter (d1) G 1, G 1/2, G 1/4, G 1/8, G 1.1/2, G 1.1/4, G 1.3/4, G 2, G 3/4, G 3/8, G 5/8, G 7/8
Shaft Ø (d2) 7 mm, 11 mm, 12 mm, 16 mm, 18 mm, 20 mm, 22 mm, 25 mm, 32 mm, 36 mm, 40 mm, 45 mm
Square (sw) 5,5 mm, 9 mm, 12 mm, 14,5 mm, 16 mm, 18 mm, 20 mm, 24 mm, 29 mm, 32 mm, 35 mm
Pitch-Inch (TPI) 11 Gangen per inch, 14 Gangen per inch, 19 Gangen per inch, 28 Gangen per inch
Brand Phantom
Tool material HSS
Standard DIN 5157
Surface Ground blank
Socket type Cylindrical with square
Cutting direction Right
