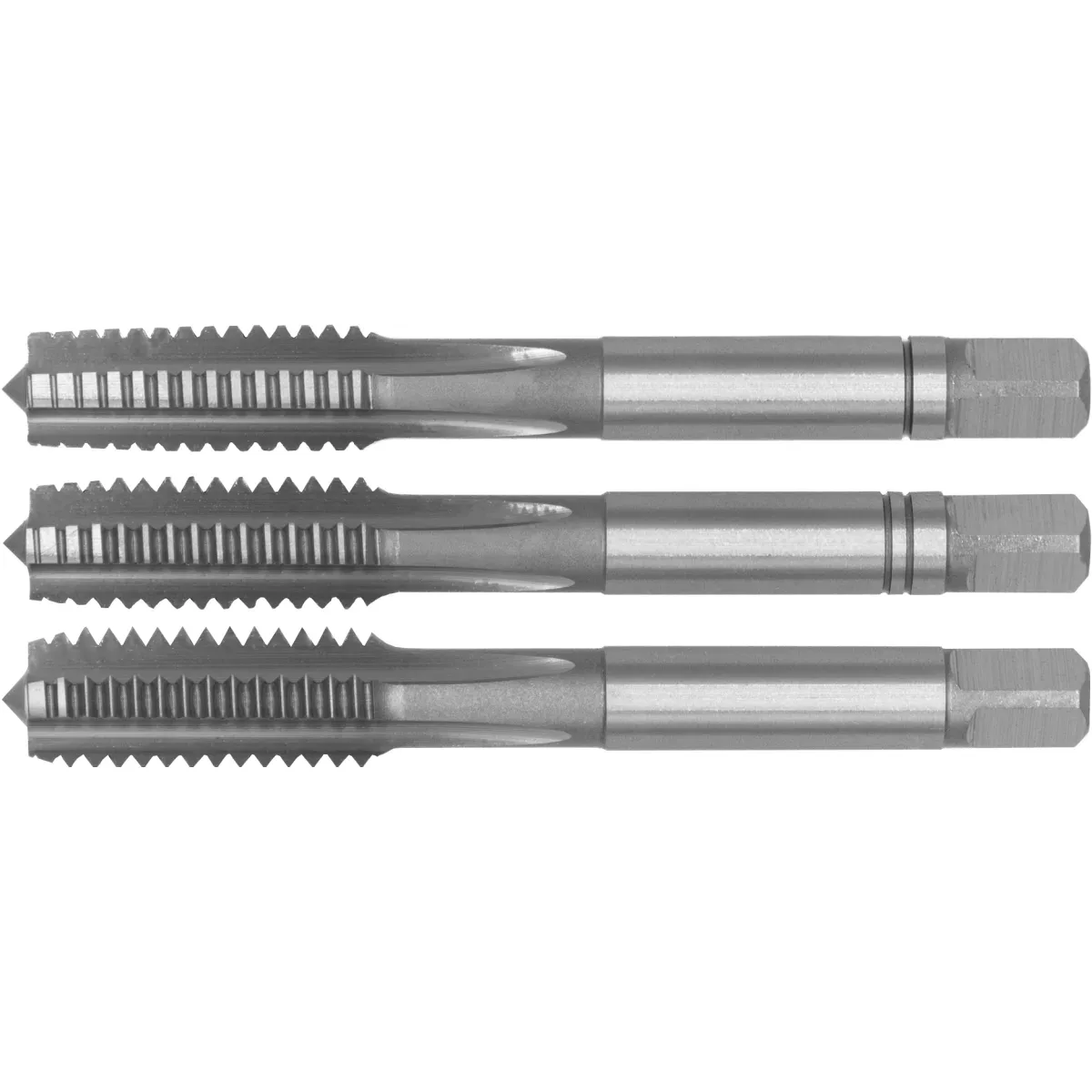

21.320 HSS Machine Taps DIN 352 UNC, set of 3 pieces
Phantom

21.320 HSS Machine Taps DIN 352 UNC, set of 3 pieces

<p>With this premium quality hand tap set, you cut extremely precise UNC screw threads in various metal materials. The set consists of a pilot, medium, and finishing tap, allowing you to achieve perfect fit and a clean thread profile. Thanks to the high-grade HSS construction, you are assured of a long service life during intensive professional use. This 3-piece set offers you the optimal control needed for every manual thread cutting operation.</p>
148.59 € 148.59 €
excl. VAT

  • Brand
  • Tool material
  • Standard
  • Surface
  • Socket type
  • Cutting direction
  • Tolerance d1 (Tol. d1)
  • Thread diameter (d1)
  • Shaft Ø (d2)
  • Square (sw)
  • Pitch-Inch (TPI)
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
General B2B terms and conditions of sale
Contact Us

Specifications

Thread diameter (d1) UNC 1, UNC 1/2, UNC 1/4, UNC 1.1/2, UNC 1.1/4, UNC 1.1/8, UNC 1.3/8, UNC 3/4, UNC 3/8, UNC 5/8, UNC 5/16, UNC 7/8, UNC 7/16, UNC 9/16, UNC Nr. 2, UNC Nr. 3, UNC Nr. 4, UNC Nr. 5, UNC Nr. 6, UNC Nr. 8, UNC Nr. 10, UNC Nr. 12
Shaft Ø (d2) 2,8 mm, 3,5 mm, 4 mm, 4,5 mm, 6 mm, 7 mm, 8 mm, 9 mm, 11 mm, 12 mm, 14 mm, 18 mm, 20 mm, 22 mm, 25 mm, 28 mm, 32 mm
Square (sw) 2,1 mm, 2,7 mm, 3 mm, 3,4 mm, 4,9 mm, 5,5 mm, 6,2 mm, 7 mm, 9 mm, 11 mm, 14,5 mm, 16 mm, 18 mm, 20 mm, 22 mm, 24 mm
Pitch-Inch (TPI) 6 Gangen per inch, 7 Gangen per inch, 8 Gangen per inch, 9 Gangen per inch, 10 Gangen per inch, 11 Gangen per inch, 12 Gangen per inch, 13 Gangen per inch, 14 Gangen per inch, 16 Gangen per inch, 18 Gangen per inch, 20 Gangen per inch, 24 Gangen per inch, 32 Gangen per inch, 40 Gangen per inch, 48 Gangen per inch, 56 Gangen per inch
Brand Phantom
Tool material HSS
Standard DIN 352
Surface Ground blank
Socket type Cylindrical with square
Cutting direction Right
Tolerance d1 (Tol. d1) 2B
