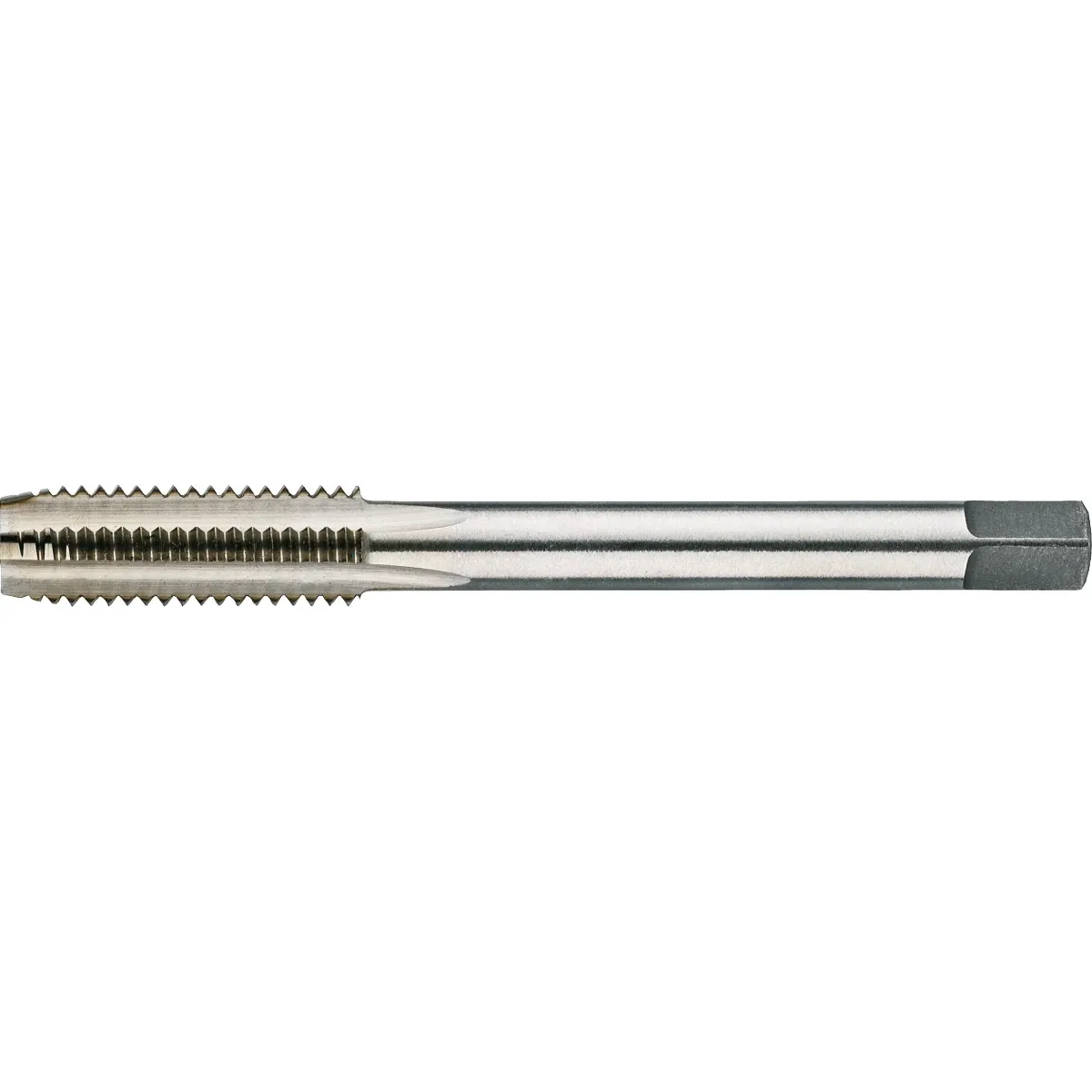

21.832 HSS Hand taps ISO 529 form C, UNC, for Phan-Coil (STI
Phantom

21.832 HSS Hand taps ISO 529 form C, UNC, for Phan-Coil (STI

<p>Professional Phantom HSS Handtap, ISO 529 Form C, specifically for installing UNC Phan-Coil thread inserts. Made from high-grade HSS for reliability.</p>
<p>This tap cuts the special oversize UNC screw thread in which you place the Phan-Coil insert (for thread repair or reinforcement). Characteristic of Form C is the very short cutting (approx. 1-2 passes). This makes the tap essential for the finishing pass and tapping blind holes right to the bottom. After installing the insert, the nominal UNC internal thread is created.</p>
22.64 € 22.64 €
excl. VAT

  • Brand
  • Tool material
  • Standard
  • Surface
  • Socket type
  • Cutting direction
  • Tolerance d1 (Tol. d1)
  • Thread diameter (d1)
  • Shaft Ø (d2)
  • Square (sw)
  • Pitch-Inch (TPI)
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
General B2B terms and conditions of sale
Contact Us

Specifications

Thread diameter (d1) UNC 1/2, UNC 1/4, UNC 3/8, UNC 5/8, UNC 5/16, UNC Nr. 10
Shaft Ø (d2) 6,3 mm, 8 mm, 10 mm, 12,5 mm, 14 mm
Square (sw) 5 mm, 6,3 mm, 8 mm, 10 mm, 11,2 mm
Pitch-Inch (TPI) 11 Gangen per inch, 13 Gangen per inch, 16 Gangen per inch, 18 Gangen per inch, 20 Gangen per inch, 24 Gangen per inch
Brand Phantom
Tool material HSS
Standard ISO 529
Surface Ground blank
Socket type Cylindrical with square
Cutting direction Right
Tolerance d1 (Tol. d1) 2B
