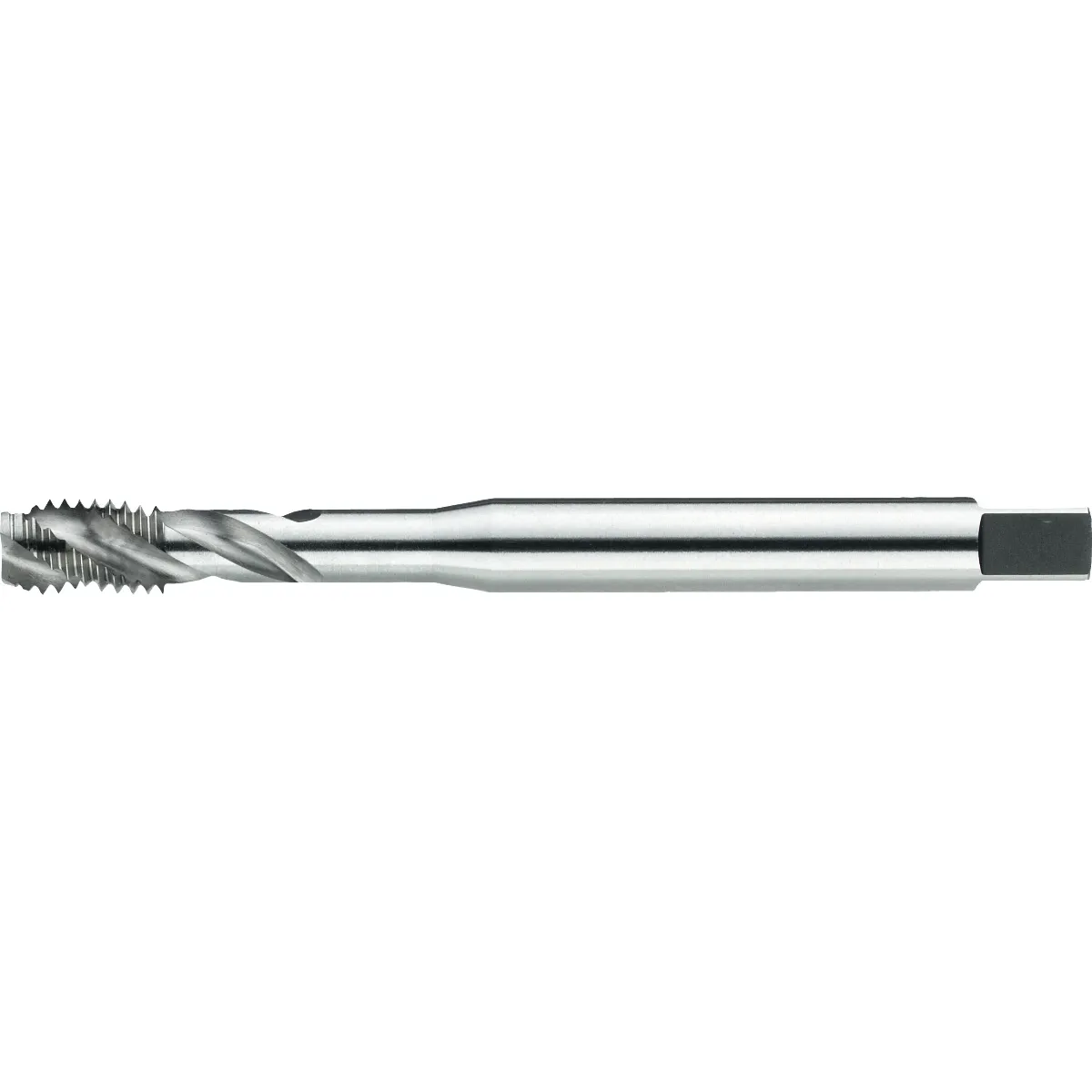

23.295 ECO PRO HSS-E Machine tap DIN 371 Metric
International Tools

23.295 ECO PRO HSS-E Machine tap DIN 371 Metric

<p>International Tools (IT) ECO PRO HSS-E Machinetap (DIN 371) of Industrial quality for the mechanical creation of Metric screw thread. As a Steel specialist, this tap is manufactured from cobalt-alloyed HSS-E, providing reliable service life in general steel locations.</p>
<p>The geometry is specifically designed for blind holes: the 35° helix angle effectively lifts chips up. The 2-3 cut thread (Form C) allows you to tap close to the bottom. The DIN 371 standard guarantees a reinforced shaft for maximum stability and precise clamping.</p>
15.36 € 15.36 €
excl. VAT

  • Brand
  • Family
  • Tool material
  • Cooling channel
  • Standard
  • Surface
  • Socket type
  • Cutting direction
  • Tolerance d1 (Tol. d1)
  • Blind/Through
  • Thread diameter (d1)
  • Wrench
  • Shape
  • Pitch (P)
  • Shaft Ø (d2)
  • Square (sw)
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
General B2B terms and conditions of sale
Contact Us

Specifications

Thread diameter (d1) M2, M3, M4, M5, M6, M8, M10
Pitch (P) 0,4 mm, 0,5 mm, 0,7 mm, 0,8 mm, 1 mm, 1,25 mm, 1,5 mm
Shaft Ø (d2) 2,8 mm, 3,5 mm, 4,5 mm, 6 mm, 8 mm, 10 mm
Square (sw) 2,1 mm, 2,7 mm, 3,4 mm, 4,9 mm, 6,2 mm, 8 mm
Brand International Tools
Family ECO PRO
Tool material HSS-E
Cooling channel No
Standard DIN 371
Surface Ground blank
Socket type Cylindrical with square
Cutting direction Right
Tolerance d1 (Tol. d1) ISO 2 / 6H
Blind/Through for blind holes
Wrench h9
Shape C
