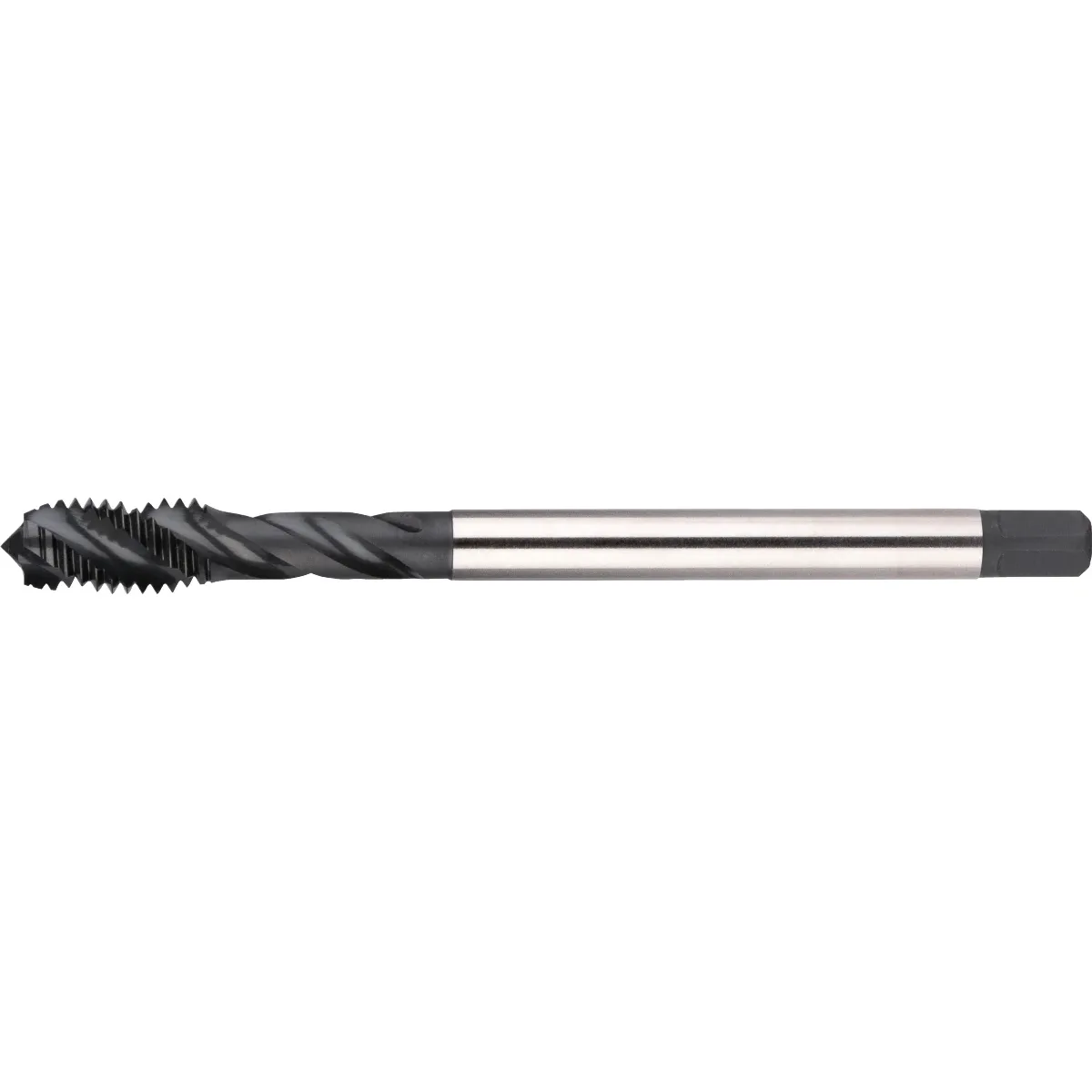

23.401 HSS-E PM Machine tap DIN 376 Metric, 1200 N/mm², steam relieved
Phantom

23.401 HSS-E PM Machine tap DIN 376 Metric, 1200 N/mm², steam relieved

<p>The Phantom HSS-E PM machine tap DIN 376 is the specialist for working steel up to 1200 N/mm². Thanks to the steam-treated finish, cold welding is effectively prevented. This tap with through-hole and a 40° helix angle is specifically designed for optimal chip removal from blind holes. Equipped with a 2-3 pass threading, this tool guarantees a reliable and accurate screw thread.</p>
32.28 € 32.28 €
excl. VAT

  • Brand
  • Tool material
  • Cooling channel
  • Standard
  • Surface
  • Socket type
  • Cutting direction
  • Tolerance d1 (Tol. d1)
  • Blind/Through
  • Thread diameter (d1)
  • Wrench
  • Shape
  • Pitch (P)
  • Shaft Ø (d2)
  • Square (sw)
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
General B2B terms and conditions of sale
Contact Us

Specifications

Thread diameter (d1) M8, M10, M12, M14, M16, M18, M20, M22, M24, M27, M30
Pitch (P) 1,25 mm, 1,5 mm, 1,75 mm, 2 mm, 2,5 mm, 3 mm, 3,5 mm
Shaft Ø (d2) 6 mm, 7 mm, 9 mm, 11 mm, 12 mm, 14 mm, 16 mm, 18 mm, 20 mm, 22 mm
Square (sw) 4,9 mm, 5,5 mm, 7 mm, 9 mm, 11 mm, 12 mm, 14,5 mm, 16 mm, 18 mm
Brand Phantom
Tool material HSS-E PM
Cooling channel No
Standard DIN 376
Surface Steam treated
Socket type Cylindrical with square
Cutting direction Right
Tolerance d1 (Tol. d1) ISO 2 / 6H
Blind/Through for blind holes
Wrench h9
Shape C
