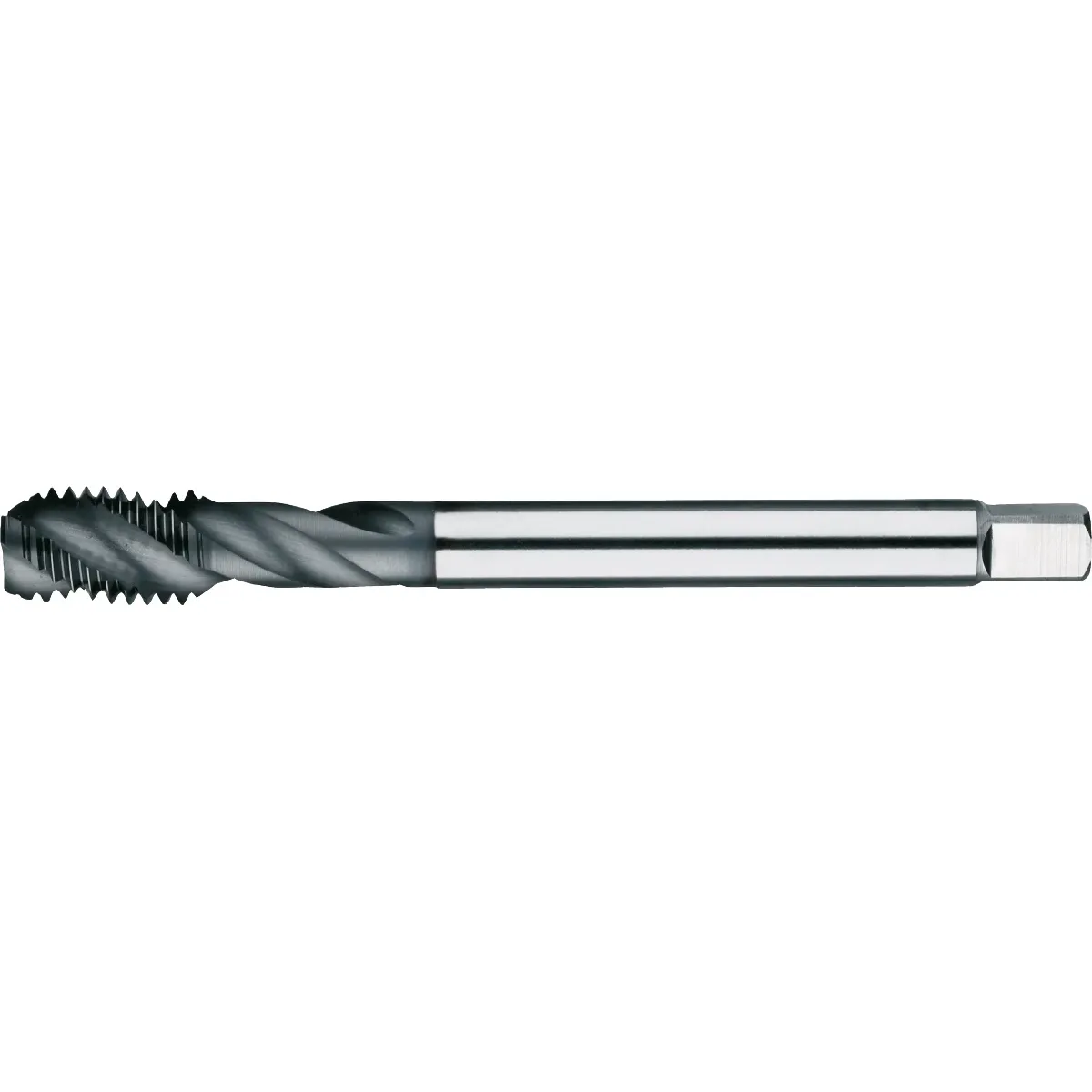

23.405 HSS-E PM Machine tap DIN 376 Metric, 1200 N/mm², TiCN
Phantom

23.405 HSS-E PM Machine tap DIN 376 Metric, 1200 N/mm², TiCN

The Phantom HSS-E PM Machinetap DIN 376 is the steel specialist for machining up to 1200 N/mm². Thanks to the wear-resistant TiCN coating, a long service life is guaranteed. This version with a through-hole and a helix angle of 40° is optimal for chip removal from blind holes. The tap features a 2-3 cut chamfer for precise screw threads in demanding applications.
56.51 € 56.51 €
excl. VAT

  • Brand
  • Tool material
  • Cooling channel
  • Standard
  • Surface
  • Socket type
  • Cutting direction
  • Tolerance d1 (Tol. d1)
  • Blind/Through
  • Thread diameter (d1)
  • Shaft Ø (d2)
  • Cassette type
  • Wrench
  • Square (sw)
  • Pilot hole diameter (Ø)
  • Shape
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
General B2B terms and conditions of sale
Contact Us

Specifications

Brand Phantom
Tool material HSS-E PM
Cooling channel Yes
Standard DIN 376
Surface TiCN
Socket type Cylindrical with square
Cutting direction Right
Tolerance d1 (Tol. d1) ISO 2 / 6H
Blind/Through for blind holes
Thread diameter (d1) M12
Shaft Ø (d2) 9 mm
Cassette type 1,75 mm
Wrench h9
Square (sw) 7 mm
Pilot hole diameter (Ø) 10,2 mm
Shape C
