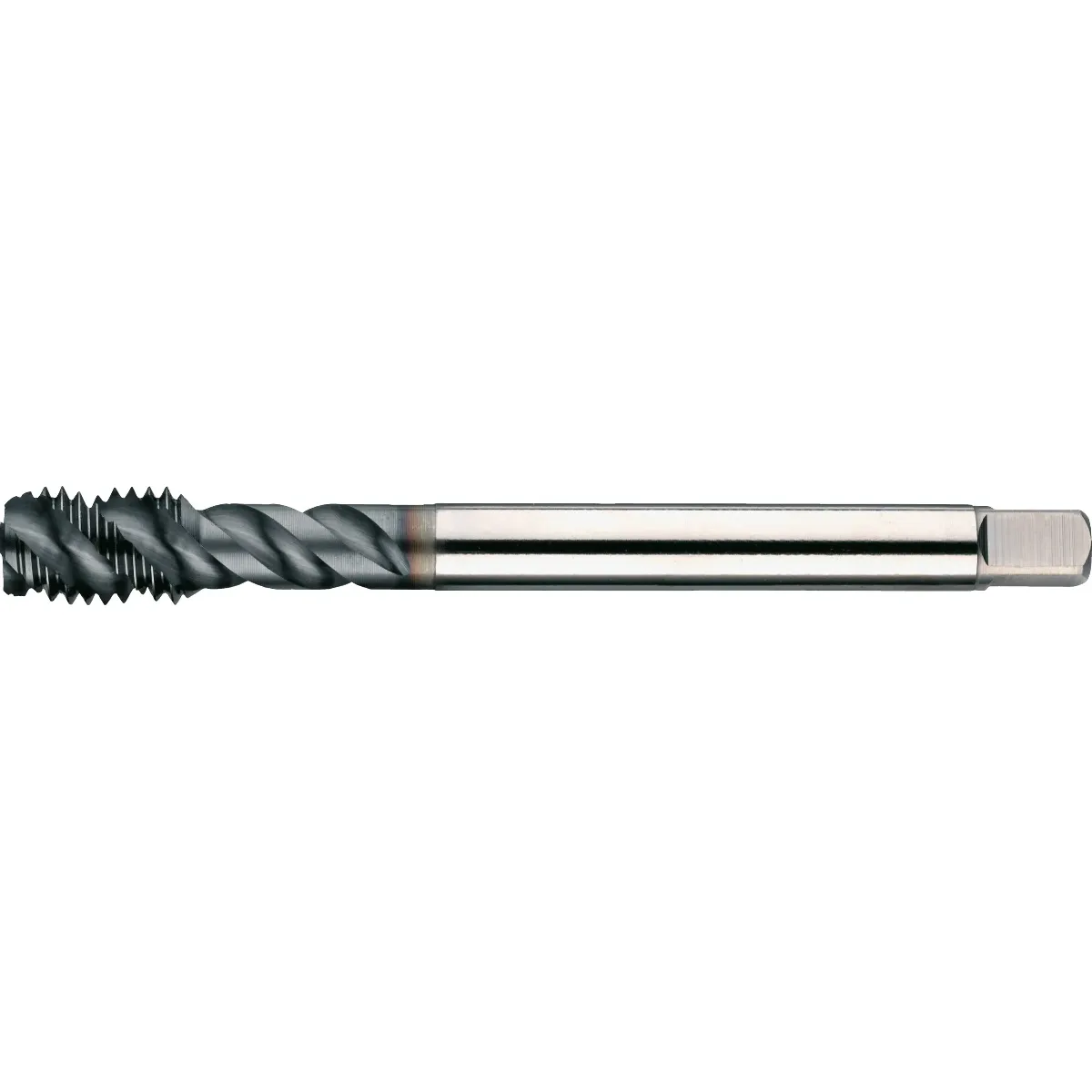

23.455 HSS-E PM Machine tap DIN 376 Metric, TiCN, stainless steel
Phantom

23.455 HSS-E PM Machine tap DIN 376 Metric, TiCN, stainless steel

<p>The Phantom HSS-E PM Machinetap DIN 376 is the specialist for working with stainless steel. Thanks to the wear-resistant TiCN coating and the PM substrate, a long tool life is guaranteed. This tap with through-hole and a helix angle of 40° ensures excellent chip removal from blind holes. The 2-3 cut design offers the right balance between thread to the bottom and tool life.</p>
66.87 € 66.87 €
excl. VAT

  • Brand
  • Tool material
  • Cooling channel
  • Standard
  • Surface
  • Socket type
  • Cutting direction
  • Tolerance d1 (Tol. d1)
  • Blind/Through
  • Thread diameter (d1)
  • Wrench
  • Shape
  • Pitch (P)
  • Shaft Ø (d2)
  • Square (sw)
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
General B2B terms and conditions of sale
Contact Us

Specifications

Thread diameter (d1) M12, M16, M20
Pitch (P) 1,75 mm, 2 mm, 2,5 mm
Shaft Ø (d2) 9 mm, 12 mm, 16 mm
Square (sw) 7 mm, 9 mm, 12 mm
Brand Phantom
Tool material HSS-E PM
Cooling channel No
Standard DIN 376
Surface TiCN
Socket type Cylindrical with square
Cutting direction Right
Tolerance d1 (Tol. d1) ISO 2 / 6H
Blind/Through for blind holes
Wrench h9
Shape C
