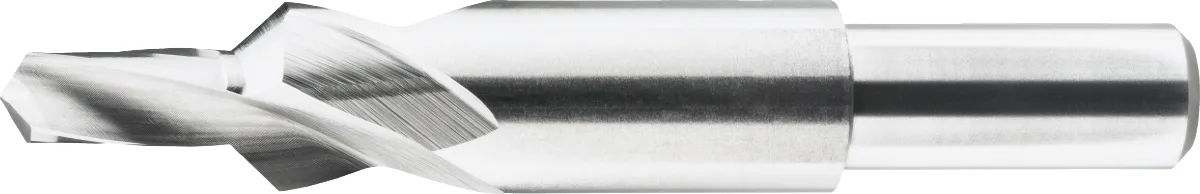

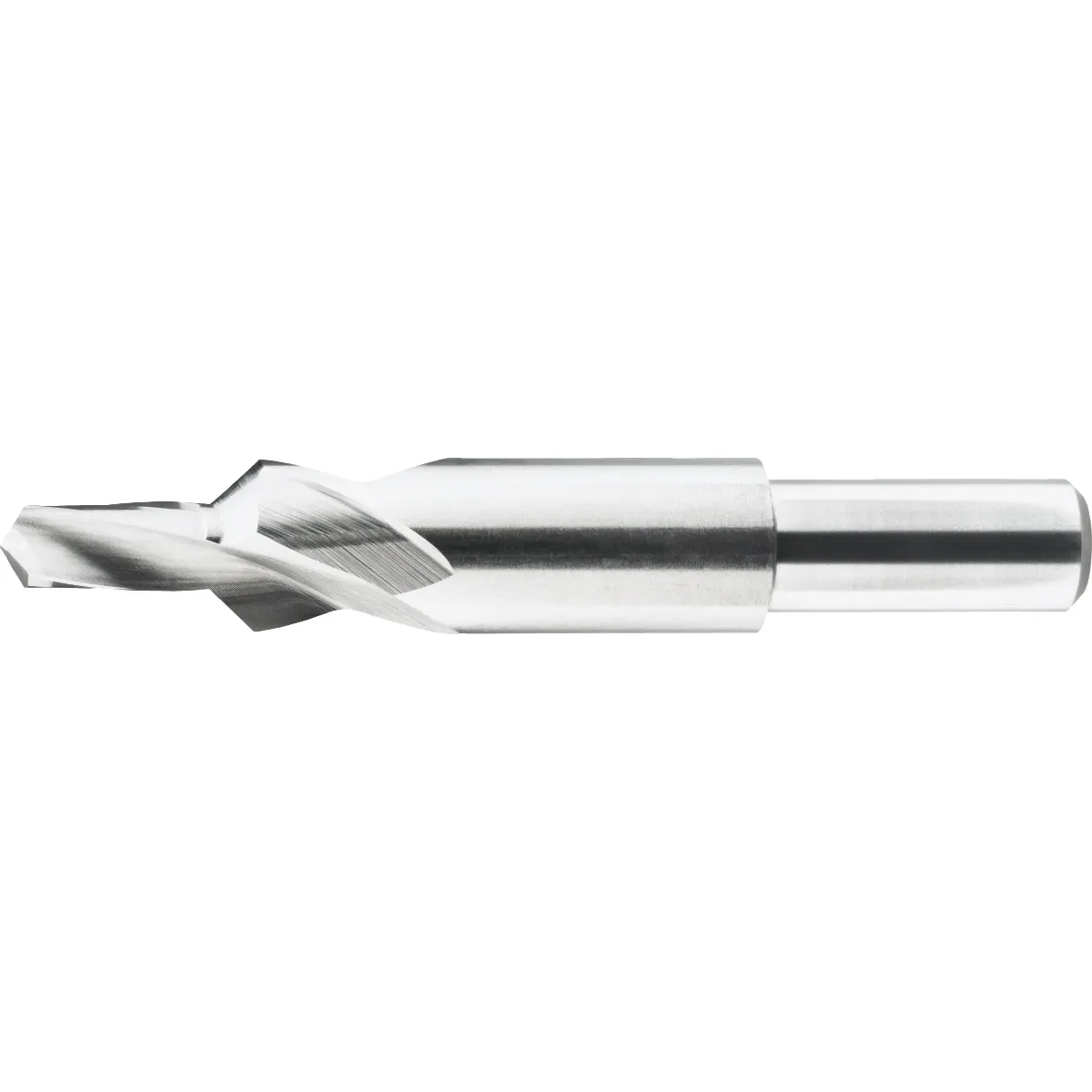

16.100 HSS-E Multi-flute drill fine fit, short, 90°
Phantom

16.100 HSS-E Multi-flute drill fine fit, short, 90°

<p>The Phantom HSS-E Multi-Flute Drill with short flute length is a precision tool, specifically designed for the efficient manufacturing of through holes with a 90° thread locking. The dimensions are precisely matched to metric thread through holes in a fine fit (high tolerance).</p>
<p>This drill combines two operations: drilling and locking in one pass. This saves a tool change and reduces cycle time, while ensuring perfect concentricity between the hole and the thread locking. Made from HSS-E (Cobalt) with a Type N spiral, the drill offers reliable tool life. The cylindrical shank ensures stable clamping.</p>
19.99 € 19.99 €
excl. VAT

  • Brand
  • Threading
  • Hole diameter (d1)
  • Tool material
  • Cooling channel
  • Surface
  • Socket type
  • Cutting direction
  • Tolerance d1 (Tol. d1)
  • Tip angle
  • Wrench
  • Shaft Ø (d2)
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
Terms and conditions
Contact Us

Specifications

Hole diameter (d1) 2,2 mm, 2,7 mm, 3,2 mm, 4,3 mm, 5,3 mm, 6,4 mm, 8,4 mm, 10,5 mm
Shaft Ø (d2) 4,6 mm, 5,7 mm, 6,5 mm, 8,6 mm, 10,4 mm, 12,4 mm, 12,5 mm
Brand Phantom
Threading Blunt point
Tool material HSS-E
Cooling channel No
Surface Ground blank
Socket type Cylindrical
Cutting direction Right
Tolerance d1 (Tol. d1) ±0,05
Tip angle 118°
Wrench h9
