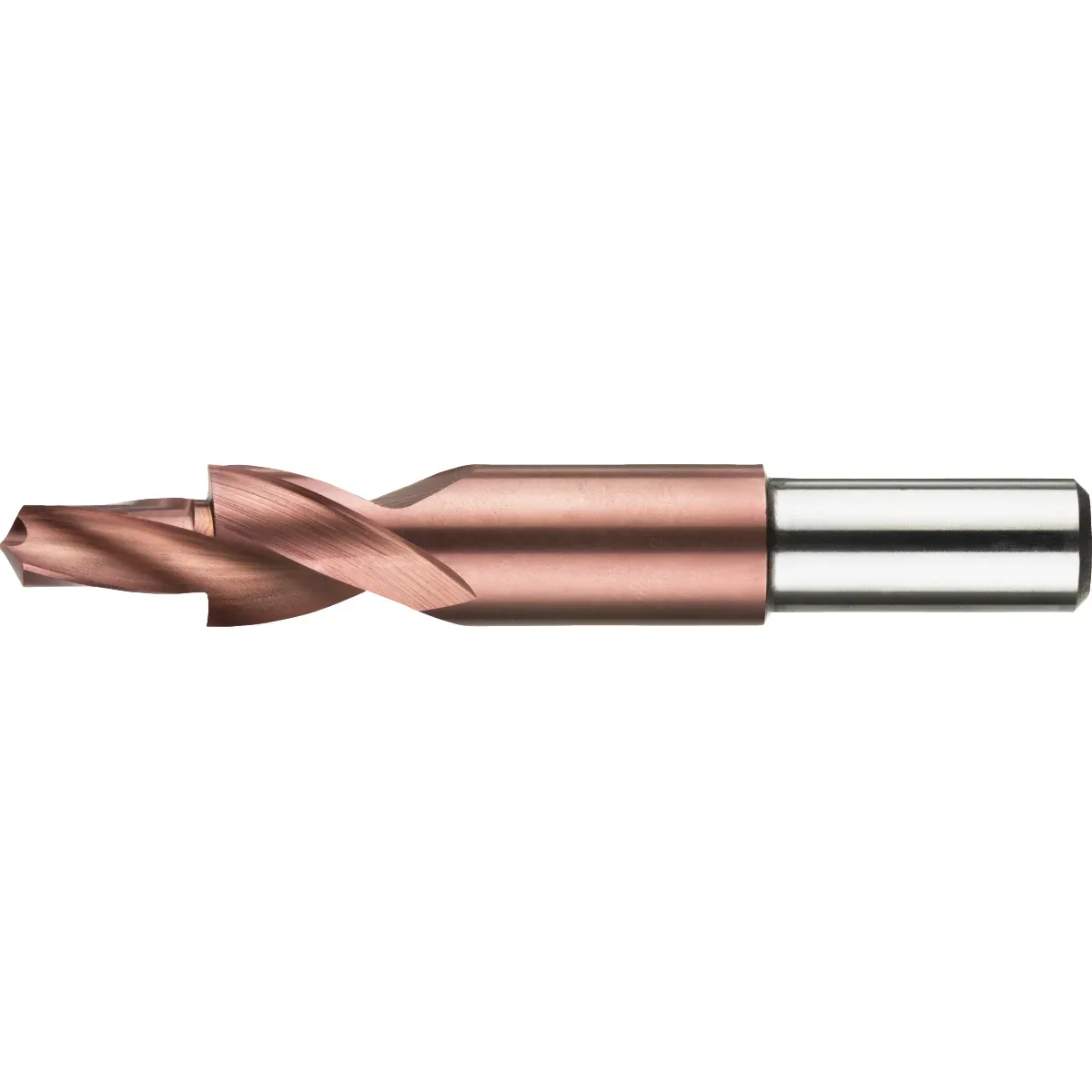

16.504 HSS-E Multi-flute drill medium fit, AlCrN-X, 180°
Phantom

16.504 HSS-E Multi-flute drill medium fit, AlCrN-X, 180°

<p>Optimize your production with the Phantom HSS-E Multi-Function Drill (180°). This tool combines drilling and countersinking in one pass, saving a tool change and significantly reducing cycle time.</p>
<p>Manufactured from HSS-E and finished with the advanced AlCrN-X coating. This PVD coating offers extreme heat resistance and superior wear resistance, resulting in a significantly longer tool life, even in demanding operations. The 180° geometry creates a perfectly flat countersink. The short taper length and cylindrical shank guarantee precision and a stable clamping.</p>
29.80 € 29.80 €
excl. VAT

  • Brand
  • Threading
  • Hole diameter (d1)
  • Tool material
  • Cooling channel
  • Surface
  • Socket type
  • Cutting direction
  • Tolerance d1 (Tol. d1)
  • Tip angle
  • Wrench
  • Shaft Ø (d2)
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
General B2B terms and conditions of sale
Contact Us

Specifications

Hole diameter (d1) 4,5 mm, 5,5 mm, 6,6 mm, 9 mm, 11 mm
Shaft Ø (d2) 8 mm, 10 mm, 11 mm, 12,5 mm
Brand Phantom
Threading Blunt point
Tool material HSS-E
Cooling channel No
Surface AlCrN-X
Socket type Cylindrical
Cutting direction Right
Tolerance d1 (Tol. d1) ±0,05
Tip angle 118°
Wrench h9
