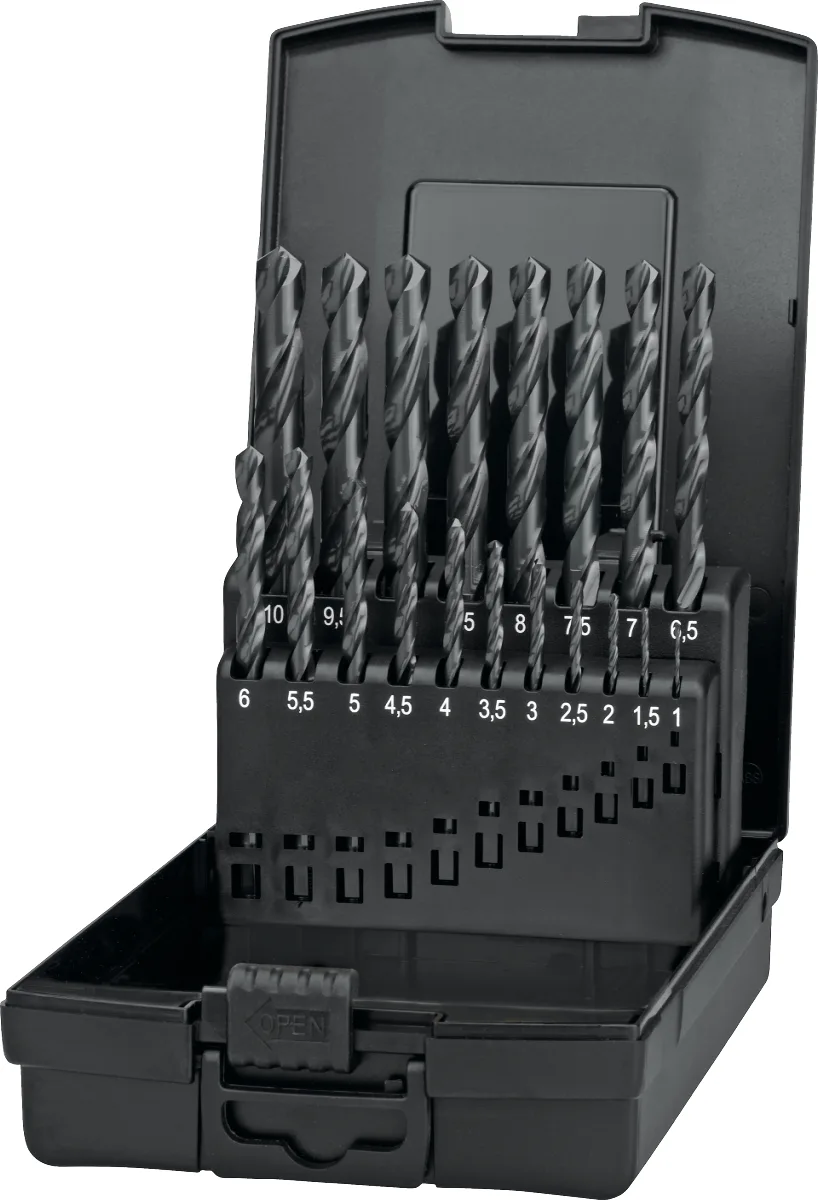

19.137 HSS Spiral Drill Set DIN 338 with three-flute shank

<p>The Phantom HSS Set Spiral Drills DIN 338 with three-flute shank offers the professional metalworker a reliable standard drill with improved grip. This set contains short ground HSS spiral drills with a cylindrical shank that transitions to a three-flute fit from 4 mm, effectively preventing slipping in the drill chuck. From 1.0 mm, the drills feature an accurate cross-point, making centering unnecessary and guaranteeing a direct, precise start. Drills from 2 mm are steam-polished for enhanced wear resistance. The 118° top angle makes this set highly versatile. The set is filled with a selection of drills from article groups 11.440 and 11.450 and delivered in a practical plastic cassette.</p>
71.23 € 71.23 €
excl. VAT

  • Brand
  • Threading
  • Tool material
  • Cooling channel
  • Standard
  • Surface
  • Socket type
  • Cutting direction
  • Spiral type
  • Tolerance d1 (Tol. d1)
  • Tip angle
  • Contains diameters (Ø mm)
  • Type
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
Terms and conditions

Specifications

Contains diameters (Ø mm) 1-10 mm x 0,5 mm, 1-13 mm x 0,5 mm
Brand Phantom
Threading Cross drilling
Tool material HSS
Cooling channel No
Standard DIN 338
Surface Steam treated
Socket type Cylindrical with 3 flat faces
Cutting direction Right
Spiral type Type N
Tolerance d1 (Tol. d1) h8
Tip angle 118°
Type 11.440
