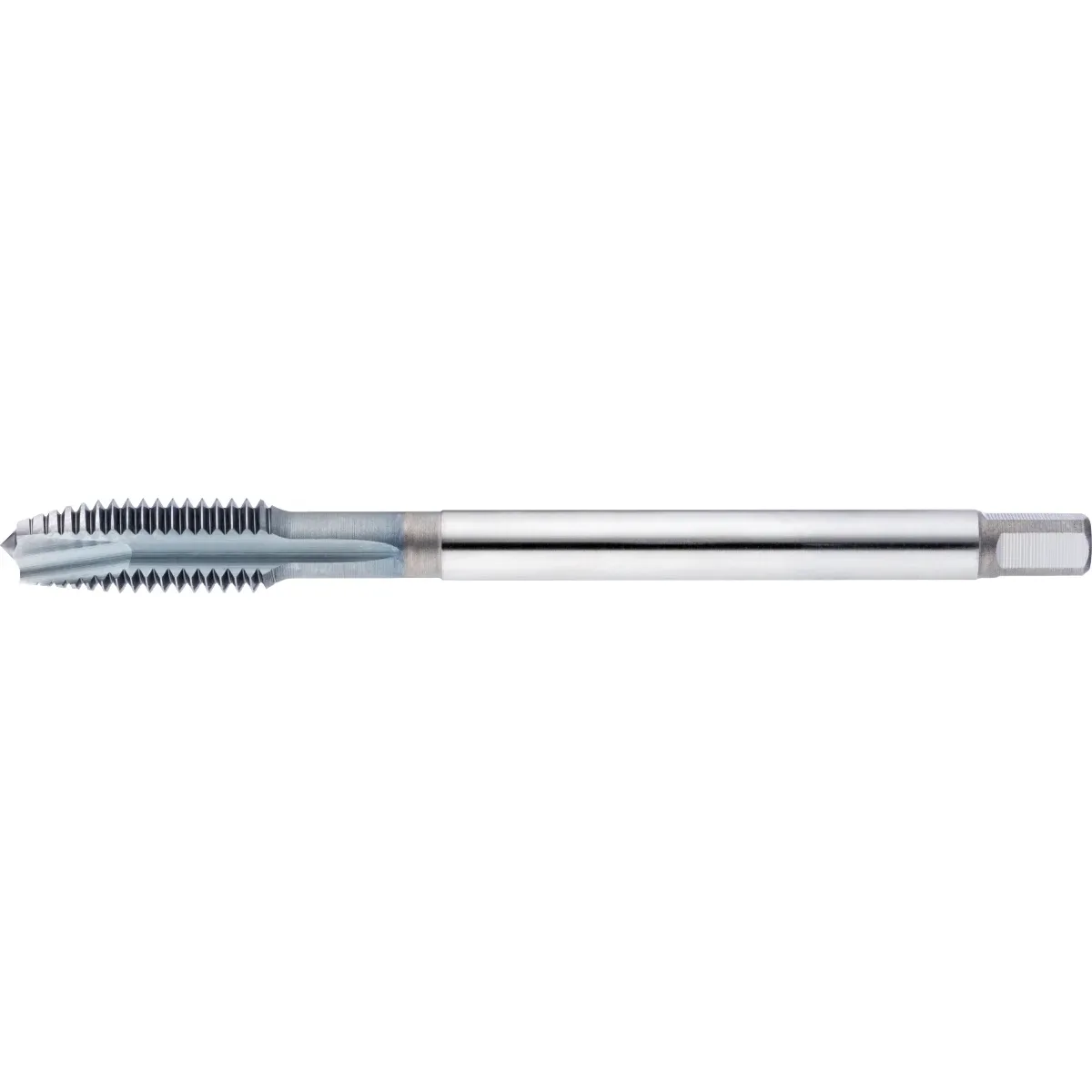

Specifications
| Thread diameter (d1) | M3, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20, M22, M24, M27, M30 |
| Pitch (P) | 0,5 mm, 0,7 mm, 0,8 mm, 1 mm, 1,25 mm, 1,5 mm, 1,75 mm, 2 mm, 2,5 mm, 3 mm, 3,5 mm |
| Shaft Ø (d2) | 2,2 mm, 2,8 mm, 3,5 mm, 4,5 mm, 6 mm, 7 mm, 9 mm, 11 mm, 12 mm, 14 mm, 16 mm, 18 mm, 20 mm, 22 mm |
| Square (sw) | 0 mm, 2,1 mm, 2,7 mm, 3,4 mm, 4,9 mm, 5,5 mm, 7 mm, 9 mm, 11 mm, 12 mm, 14,5 mm, 16 mm, 18 mm |
| Brand | Phantom |
| Family | UNI |
| Tool material | HSS-E |
| Cooling channel | No |
| Standard | DIN 376 |
| Surface | TiCN |
| Socket type | Cylindrical with square |
| Cutting direction | Right |
| Tolerance d1 (Tol. d1) | ISO 2 / 6H |
| Blind/Through | for through holes |
| Wrench | h9 |
| Shape | B |
