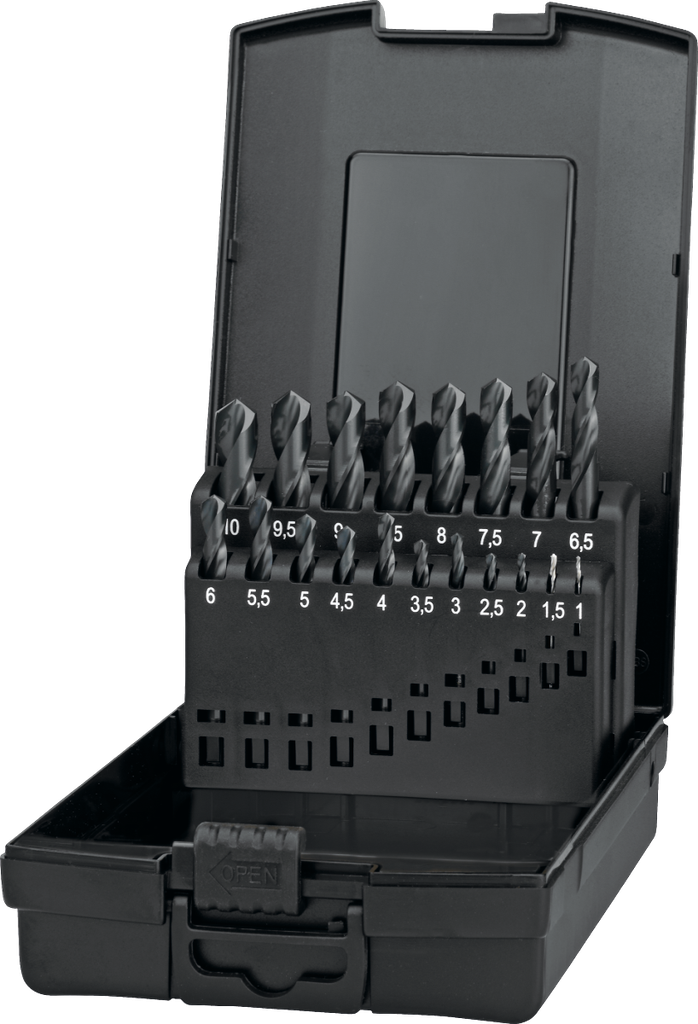

19.113 HSS Spiral Drill Set DIN 1897

The Phantom HSS Set Twist Drills DIN 1897 contains a range of extra short polished twist drills with cylindrical shanks from article group 11.130, neatly arranged in a robust plastic cassette. From a diameter of 1.6 mm, the drills feature a precise cross-grinding and a top angle of 118°, resulting in optimal centering properties and eliminating the need for pre-centering, especially when working with plate material. Drills with a diameter ≥ 2 mm are steam-rolled, which increases their wear resistance. This set provides the professional metalworker with a complete basic set of standard drills, characterized by their stability thanks to the extra short design.
65.18 € 65.18 €
excl. VAT

  • Brand
  • Threading
  • Tool material
  • Cooling channel
  • Standard
  • Surface
  • Socket type
  • Cutting direction
  • Spiral type
  • Tolerance d1 (Tol. d1)
  • Tip angle
  • Contains diameters (Ø mm)
  • Type
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
Terms and conditions

Specifications

Contains diameters (Ø mm) 1-10 mm x 0,5 mm, 1-13 mm x 0,5 mm
Brand Phantom
Threading Cross drilling
Tool material HSS
Cooling channel No
Standard DIN 1897
Surface Steam treated
Socket type Cylindrical
Cutting direction Right
Spiral type Type N
Tolerance d1 (Tol. d1) h8
Tip angle 118°
Type 11.130
