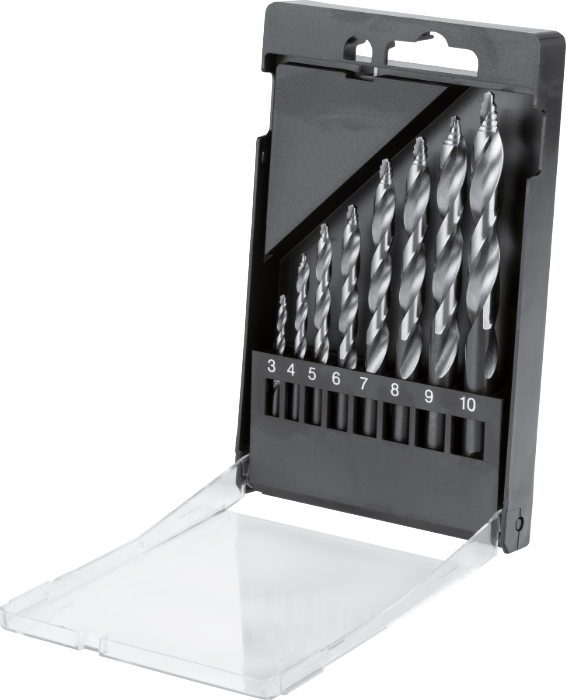

19.139 HSS Spiral Drill Set DIN 338 Step-point, with three-flute shank
Phantom

19.139 HSS Spiral Drill Set DIN 338 Step-point, with three-flute shank

<p>DIN 338, with three-flute shank from 4 mm, short ground version, with cross-point, top angle 118°, in plastic cassette, filled with drills from article group, 11.443.<br><br>The step size per diameter varies for optimal force distribution and therefore this step-point spiral drill ensures controlled and easy drilling. Very suitable for sheet metal (≤2mm) and profiles, in addition it effortlessly drills round, knot-free holes in wood and plastic, regardless of thickness. Makes drilling at an angle possible and does not slip thanks to the three-flute shank.</p>
130.37 € 130.37 €
excl. VAT

  • Brand
  • Threading
  • Tool material
  • Cooling channel
  • Standard
  • Surface
  • Socket type
  • Cutting direction
  • Spiral type
  • Tolerance d1 (Tol. d1)
  • Tip angle
  • Contains diameters (Ø mm)
  • Type
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
Terms and conditions
Contact Us

Specifications

Contains diameters (Ø mm) 1-10 mm x 0,5 mm, 1-13 mm x 0,5 mm, 3-10 mm x 1 mm
Brand Phantom
Threading Cross drilling
Tool material HSS
Cooling channel No
Standard DIN 338
Surface Steam treated
Socket type Cylindrical with 3 flat faces
Cutting direction Right
Spiral type Type N
Tolerance d1 (Tol. d1) h8
Tip angle 118°
Type 11.443
