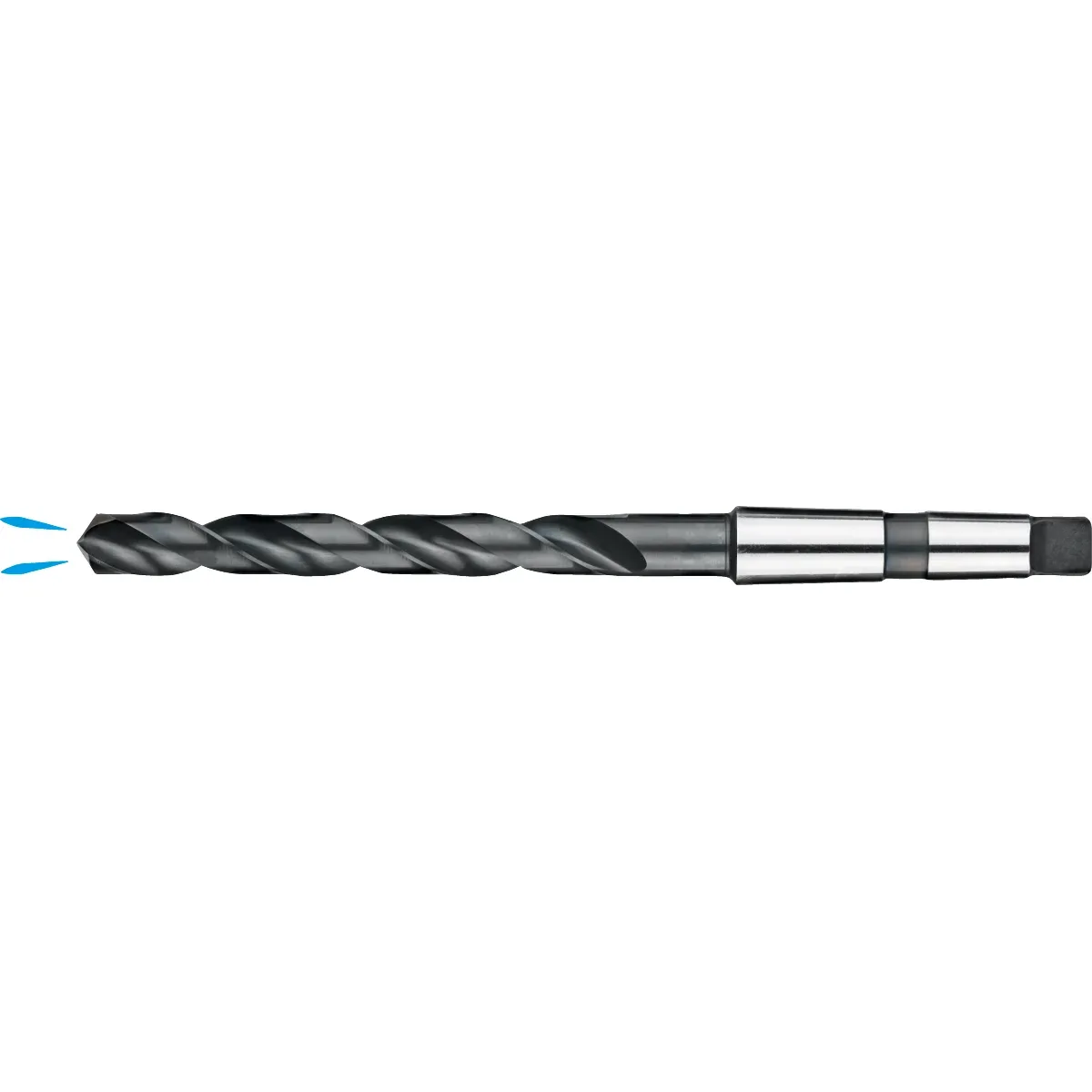

12.840 HSS Spiral drill with cooling channel, axial, MK
Phantom

12.840 HSS Spiral drill with cooling channel, axial, MK

This Phantom HSS spiral drill, a long version with Morse Conus shank (MK), is specifically developed for efficiently drilling deep holes. The integrated axial cooling channel ensures internal cooling directly at the cutting edge, resulting in optimal chip removal and temperature control, crucial for deep drilling. The 118° point angle with worn tip reduces the required starting force. The professional solution for productive deep hole drilling on machines with MK spindle and internal coolant supply.
174.05 € 174.05 €
excl. VAT

  • Brand
  • Threading
  • Hole diameter (d1)
  • Tool material
  • Cooling channel
  • Surface
  • Socket type
  • Cutting direction
  • Spiral type
  • Tolerance d1 (Tol. d1)
  • Tip angle
  • Shank (d2)
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
General B2B terms and conditions of sale
Contact Us

Specifications

Hole diameter (d1) 10 mm, 11 mm, 12 mm, 13 mm, 14 mm, 15 mm, 16 mm, 18 mm, 20 mm, 22 mm, 24 mm, 25 mm, 26 mm, 28 mm, 30 mm
Shank (d2) MK 2, MK 3, MK 4
Brand Phantom
Threading Blunt point
Tool material HSS
Cooling channel Yes
Surface Steam treated
Socket type Morse taper (DIN 228)
Cutting direction Right
Spiral type Type N
Tolerance d1 (Tol. d1) h8
Tip angle 118°
