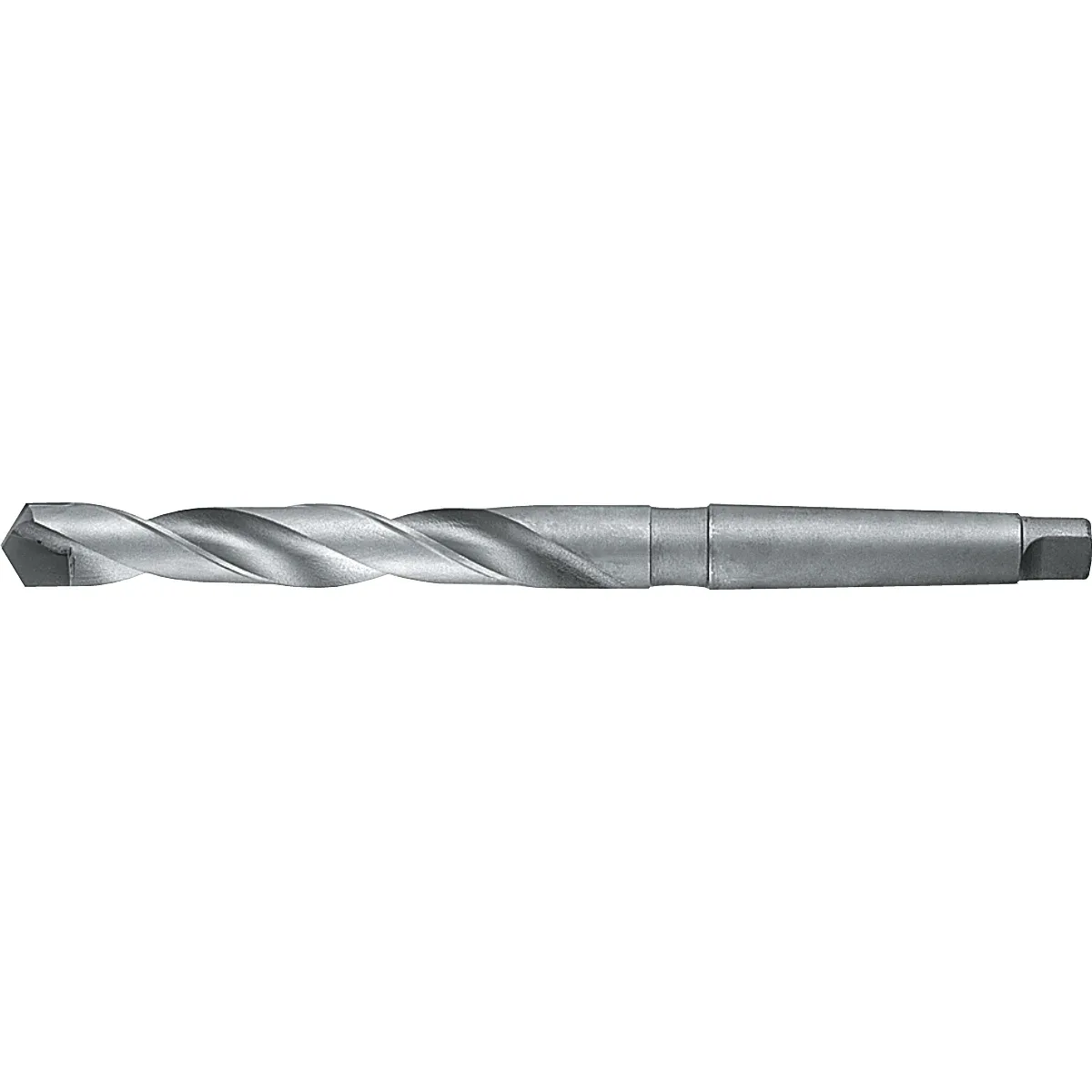

12.600 HM-tip Spiral drill DIN 345 MK
Phantom

12.600 HM-tip Spiral drill DIN 345 MK

The Phantom HM-tip Spiral Drill DIN 345 MK is the problem solver for professional metalworkers. This drill, with Morse taper shank, is specifically designed for challenging tasks such as drilling holes and chamfering bolt ends. The 3° rake angle and a 120° point angle ensure an optimal cutting geometry for hard materials. The robust construction and HM-tip ensure reliable performance and a long service life under the most demanding conditions.
106.04 € 106.04 €
excl. VAT

  • Brand
  • Threading
  • Hole diameter (d1)
  • Tool material
  • Cooling channel
  • Standard
  • Surface
  • Socket type
  • Cutting direction
  • Spiral type
  • Tolerance d1 (Tol. d1)
  • Tip angle
  • Shank (d2)
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
General B2B terms and conditions of sale
Contact Us

Specifications

Hole diameter (d1) 10 mm, 10,5 mm, 11 mm, 11,5 mm, 12 mm, 12,5 mm, 13 mm, 13,5 mm, 14 mm, 14,5 mm, 15 mm, 15,5 mm, 16 mm, 16,5 mm, 17 mm, 17,5 mm, 18 mm, 18,5 mm, 19 mm, 19,5 mm, 20 mm, 20,5 mm, 21 mm, 21,5 mm, 22 mm, 22,5 mm, 23 mm, 23,5 mm, 24 mm, 24,5 mm, 25 mm, 25,5 mm, 26,5 mm, 27 mm, 27,5 mm, 29 mm, 29,5 mm, 33 mm, 34 mm, 36 mm, 37 mm, 39 mm, 40 mm
Shank (d2) MK 1, MK 2, MK 3, MK 4
Brand Phantom
Threading Facet
Tool material HM-tip
Cooling channel No
Standard DIN 345
Surface Ground blank
Socket type Morse taper (DIN 228)
Cutting direction Right
Spiral type Type N
Tolerance d1 (Tol. d1) h8
Tip angle 120°
