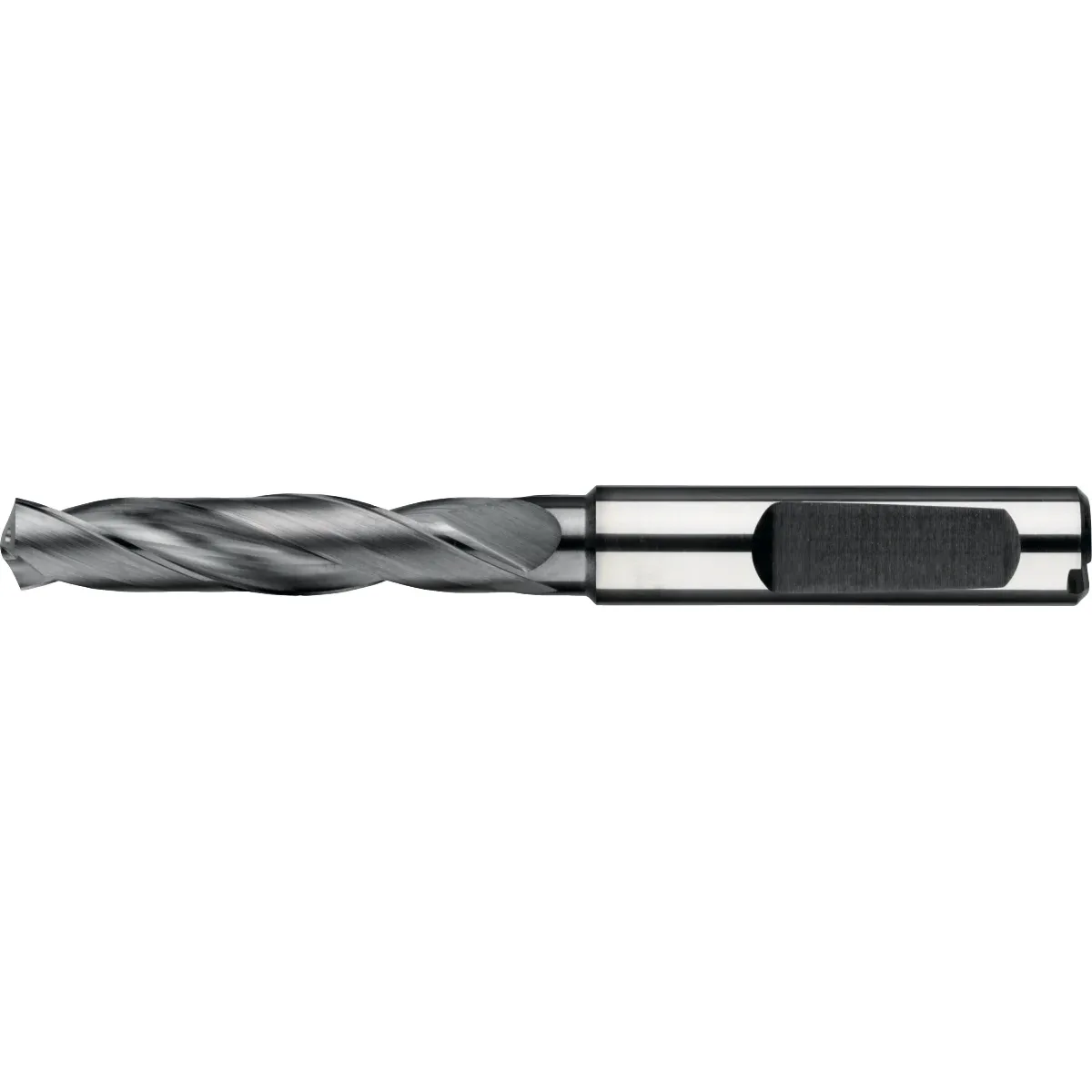

11.251 UNI hard metal Spiral drill DIN 6537-K 3xD TiAlN
Phantom

11.251 UNI hard metal Spiral drill DIN 6537-K 3xD TiAlN

<p>The Phantom UNI hardmetal Spiral Drill DIN 6537-K 3xD TiAlN is an advanced cutting tool for the professional metalworker. This hardmetal drill is equipped with a durable TiAlN coating, resulting in superior performance and extended service life across various drilling operations. The 3xD shank length ensures a short and stable construction, guaranteeing precise results. The cylindrical shank conforming to DIN 6535-HE, a Whistle-notch execution, ensures an extremely reliable and slip-free clamping in suitable tool holders, especially during heavy-duty operations. The 140° top angle makes this spiral drill universally applicable for a wide range of materials.</p>
43.02 € 43.02 €
excl. VAT

  • Brand
  • Threading
  • Hole diameter (d1)
  • Family
  • Tool material
  • Cooling channel
  • Standard
  • Surface
  • Socket type
  • Cutting direction
  • Spiral type
  • Tolerance d1 (Tol. d1)
  • Tip angle
  • Wrench
  • Diameter-to-cutting-length ratio (xD)
  • Shape
  • Shaft Ø (d2)
Add to cart
Add to wishlist
🚚  Order before 13:30, shipped today
📦 98.5% of articles in stock — call us to be certain of current stock
📞  Technical advice:   +32 56 70 15 76
General B2B terms and conditions of sale
Contact Us

Specifications

Hole diameter (d1) 3 mm, 3,3 mm, 3,5 mm, 3,8 mm, 4 mm, 4,2 mm, 4,5 mm, 4,8 mm, 5 mm, 5,5 mm, 5,8 mm, 6 mm, 6,5 mm, 6,8 mm, 7 mm, 7,5 mm, 8 mm, 8,5 mm, 8,8 mm, 9 mm, 9,5 mm, 10 mm, 10,2 mm, 11 mm, 11,5 mm, 12 mm, 12,5 mm, 13 mm, 14 mm, 15 mm
Shaft Ø (d2) 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm
Brand Phantom
Threading Phantom
Family UNI
Tool material Carbide
Cooling channel No
Standard DIN 6537-K
Surface TiAlN
Socket type Whistle notch (DIN 6535-HE)
Cutting direction Right
Spiral type Phantom
Tolerance d1 (Tol. d1) m7
Tip angle 140°
Wrench h6
Diameter-to-cutting-length ratio (xD) 3xD
Shape K
